Universal Ceiling Bracket for Projector, Black - TECHLY - ICA-PM 100BK-1
Universal Ceiling Bracket for Projector, Black - TECHLY - ICA-PM 100BK-1
Universal Ceiling Bracket for Projector, Black - TECHLY - ICA-PM 100BK-0
Universal Ceiling Bracket for Projector, Black - TECHLY - ICA-PM 100BK-1
Universal Ceiling Bracket for Projector, Black - TECHLY - ICA-PM 100BK-2
Universal Ceiling Bracket for Projector, Black - TECHLY - ICA-PM 100BK-3
+5
Universal Ceiling Bracket for Projector, Black - TECHLY - ICA-PM 100BK-1
Techly

Universal Ceiling Bracket for Projector, Black

Cod: ICA-PM 100BK

Barcode: 8054529022403

Supplier Code: 022403

Weight: 1.558 Kg

Min. sale unit: 1 Pcs

Package pcs: 8 Pcs

Available

Incl. Tax: €40.39

Excl. Tax: €33.11 + VAT

Cod
ICA-PM 100BK
Barcode
8054529022403
Supplier Code
022403
Weight
1.558 Kg
Min. sale unit
1 Pcs
Package pcs
8 Pcs
Add to Compare
Shipping from €6.10 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Certificazioni: RoHS
Certificazioni: TÜV
Anni di Garanzia: 10
Portata Kg: 10
Inclinazione Verticale: 180°
Inclinazione orizzontale: 180°
Rotazione: 360°

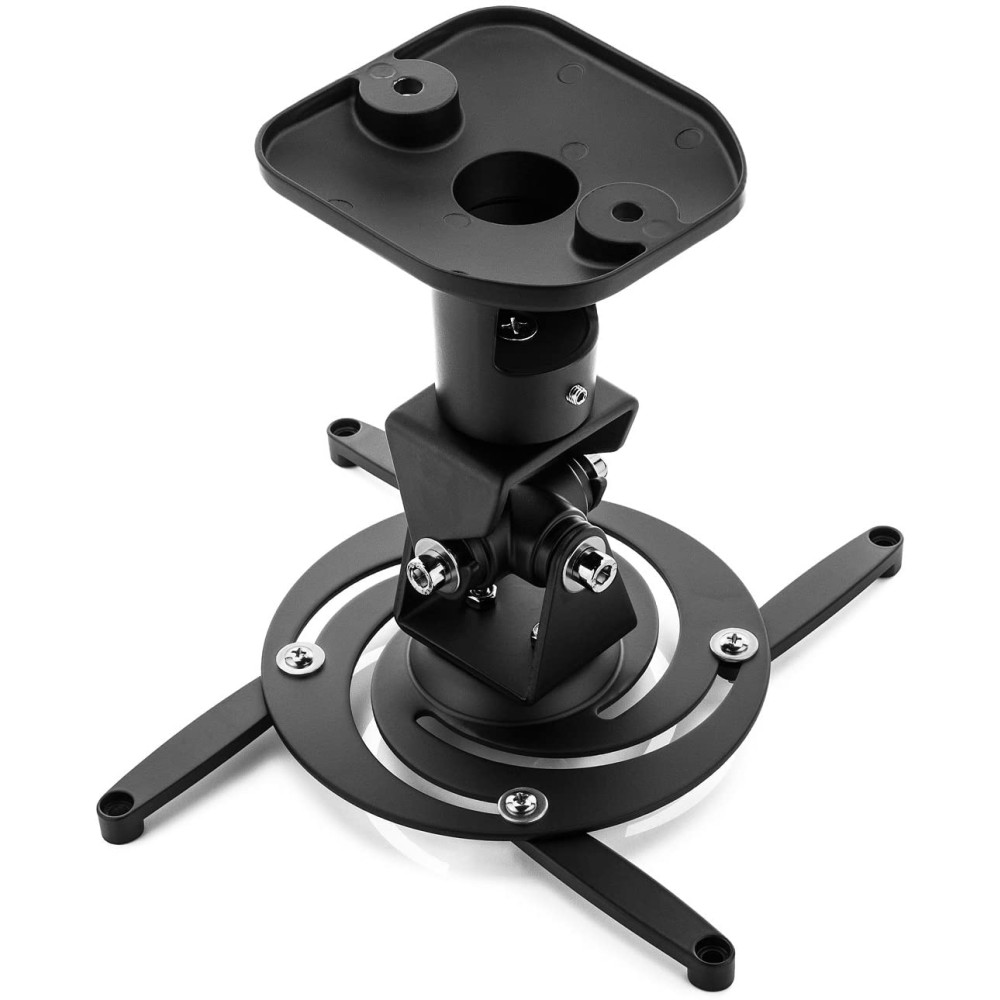

ICA PM-100 BK is a universal ceiling support for projectors up to 10 kg. It provides a multidirectional positioning with four support arms adjustable that can adapt to a wide range of mounting holes. The cables required for the installation pass in the middle column and therefore are not visible. This media projector is perfect for use in classrooms, meeting rooms, hotels, bars and restaurants and much more.

Characteristics
  • Universal bracket ceiling projector
  • Compatible with most projectors on the market
  • Maximum weight supported: 10 kg
Technical specifications
  • Ceiling mount for projectors
  • With 4 support arms adjustable
  • Material: Aluminum
  • horizontal inclination: 180°
  • Vertical Tilt: 180°
  • Rotation: 360°
  • With cable management system
  • Finish: powder coating
  • Black Colour
Dimensions
  • Base width: 130 mm
  • Depth base: 130 mm
  • Height: 218 mm
  • Width mounting bracket: 307 mm
Package Contents
  • Ceiling mount for projectors
  • Mounting screws
  • User manual
Description
ICA PM-100 BK is a universal ceiling support for projectors up to 10 kg. It provides a multidirectional positioning with four support arms adjustable that can adapt to a wide range of mounting holes. The cables required for the installation pass in the middle column and therefore are not visible. This media projector is perfect for use in classrooms, meeting rooms, hotels, bars and restaurants and much more.

Characteristics
  • Universal bracket ceiling projector
  • Compatible with most projectors on the market
  • Maximum weight supported: 10 kg
Technical specifications
  • Ceiling mount for projectors
  • With 4 support arms adjustable
  • Material: Aluminum
  • horizontal inclination: 180°
  • Vertical Tilt: 180°
  • Rotation: 360°
  • With cable management system
  • Finish: powder coating
  • Black Colour
Dimensions
  • Base width: 130 mm
  • Depth base: 130 mm
  • Height: 218 mm
  • Width mounting bracket: 307 mm
Package Contents
  • Ceiling mount for projectors
  • Mounting screws
  • User manual
Data sheet
general
Brand TECHLY Barcode 8054529022403
Weight 1.5580 Certifications RoHS, TÜV
The package includes • Supporto a soffitto per proiettori • Viti di fissaggio • Manuale d'uso Years of Warranty 10
Codice Fornitore 022403
compatibility
Typology Ceiling TV Size -
Capacity Kg 10
features
Minimum wall distance 218 mm Maximum wall distance 218 mm
Tilt 180° Swivel 180°
Junctions number No Rotation 360°
Color Black Levelling bubble No
Curved TV support - Security system No
