Universal holder for ceiling LED LCD TV 23-37 ' tilt - TECHLY - ICA-CPLB 102S-1
Universal holder for ceiling LED LCD TV 23-37 ' tilt - TECHLY - ICA-CPLB 102S-1
Universal holder for ceiling LED LCD TV 23-37 ' tilt - TECHLY - ICA-CPLB 102S-0
Universal holder for ceiling LED LCD TV 23-37 ' tilt - TECHLY - ICA-CPLB 102S-1
Universal holder for ceiling LED LCD TV 23-37 ' tilt - TECHLY - ICA-CPLB 102S-2
Universal holder for ceiling LED LCD TV 23-37 ' tilt - TECHLY - ICA-CPLB 102S-1
Techly

Universal holder for ceiling LED LCD TV 23-37 ' tilt

Cod: ICA-CPLB 102S

Barcode: 8057685306066

Supplier Code: 306066

Weight: 6.300 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
ICA-CPLB 102S
Barcode
8057685306066
Supplier Code
306066
Weight
6.300 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Certificazioni: RoHS
Anni di Garanzia: 10
Dimensioni TV: 23 - 37
Portata Kg: 45
Distanza minima muro: 57 mm
Inclinazione Verticale: 0 to -20°
Inclinazione orizzontale: 360°
  • Ceiling mount for LCD LED TV 23-37 "
  • Supports up to VESA 400 x 300 mm
  • Maximum supported weight: 45 kg
  • inclination from 0 ° to -20 °
  • extendable bar with adjustable from 57 to 79.8 cm
  • Color: Black
  • Fixing accessories (screws, bolts ...) included in the package
Description
  • Universal bracket to attach a TV LED / LCD ceiling; Quick and easy to install, it is ideal for home, office and commercial applications
<b> Features </ b>
  • Bracket suitable for LED LCD TV 23-37 "
  • Supports up to VESA 400 x 300 mm
  • Maximum supported weight: 45 kg
<b> Specifications </ b>
  • inclination from 0 ° to -20 °
  • Orientation Horizontal: 360 °
  • Security system with built-in lock to protect from theft
  • extensible bar: adjustable from 57 to 79.8 cm

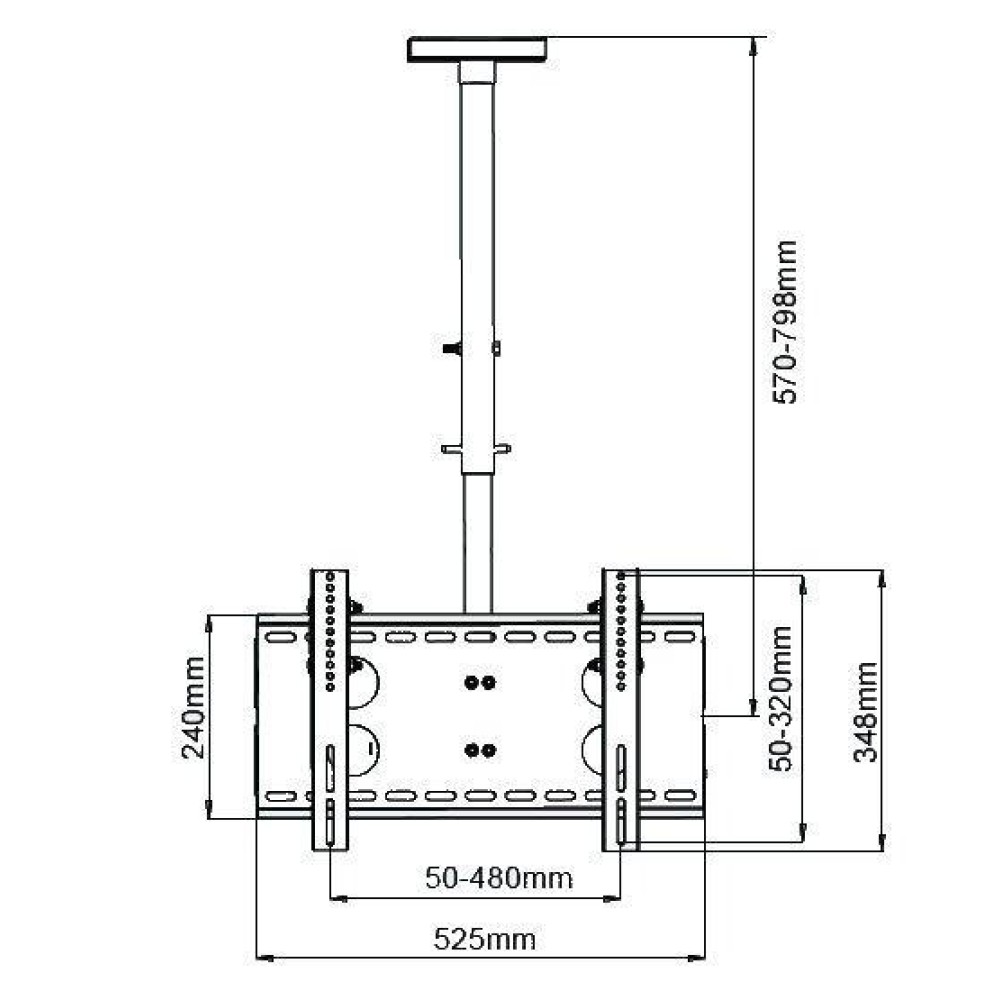

  • Dimensions: 525 x (570-798) x 100mm, 5.8kg
  • Color: Black
<b> The package includes </ b>
  • wall mount for LED LCD TV
  • Fixing accessories (screws, bolts ...) and installation instructions
Data sheet
general
Brand TECHLY Barcode 8057685306066
Weight 6.3000 Certifications RoHS
The package includes • Supporto per TV LED/LCD • Accessori di fissaggio (viti, tasselli...) e istruzioni per l'installazione Years of Warranty 10
Codice Fornitore 306066
compatibility
Typology Ceiling TV Size 23 - 37"
VESA (mm) 50x50 , 75x75 , 100x100, 120x180 , 200x100 , 200x200 , 200x300 , 300x300 , 400x200 , 400x300 Capacity Kg 45
features
Minimum wall distance 57 mm Maximum wall distance 798 mm
Tilt 0 to -20° Swivel 360°
Junctions number No Rotation No
Color Black Levelling bubble No
Security system Yes
