Techly

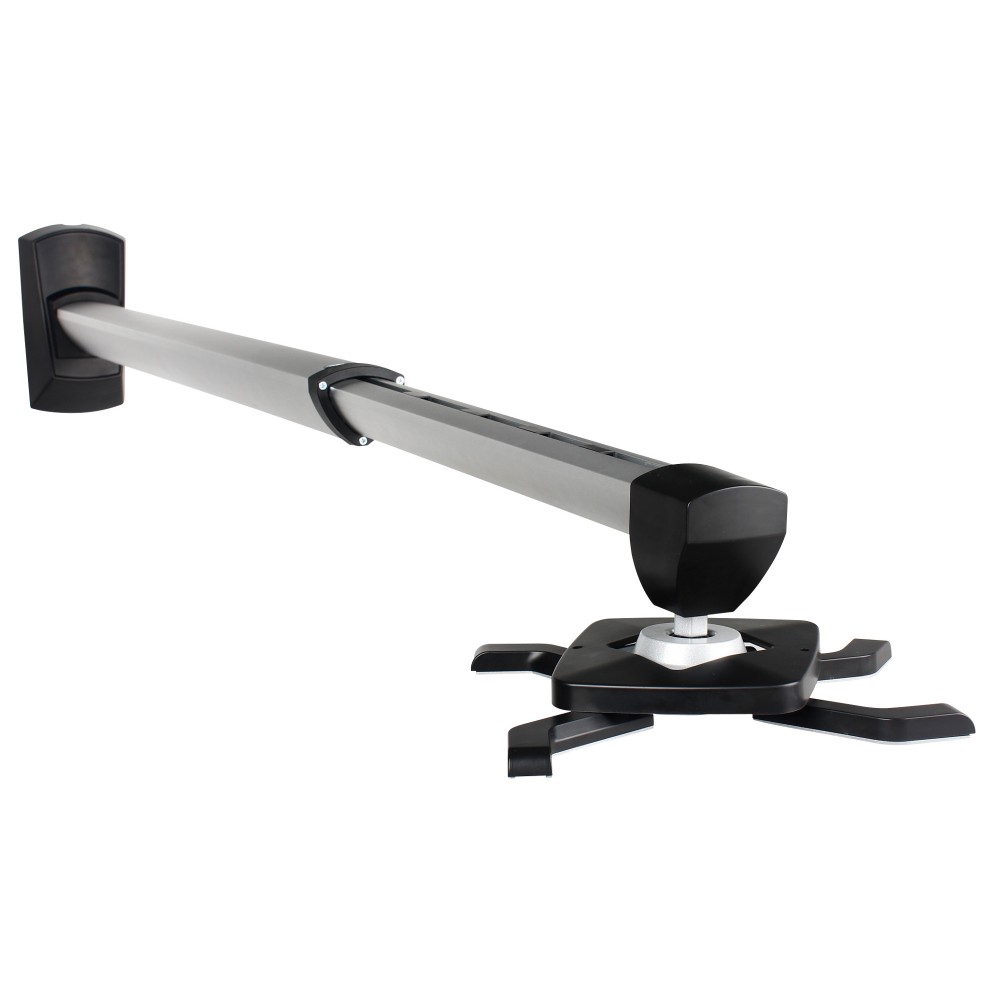

Universal Wall Bracket for Projectors with Extra Extension - TECHLY - ICA-PM 14XXL-1
Universal Wall Bracket for Projectors with Extra Extension - TECHLY - ICA-PM 14XXL-1
Universal Wall Bracket for Projectors with Extra Extension - TECHLY - ICA-PM 14XXL-0
Universal Wall Bracket for Projectors with Extra Extension - TECHLY - ICA-PM 14XXL-1
Universal Wall Bracket for Projectors with Extra Extension - TECHLY - ICA-PM 14XXL-1
Techly

Universal Wall Bracket for Projectors with Extra Extension

Cod: ICA-PM 14XXL

Barcode: 8051128105216

Supplier Code: 105216

Weight: 4.264 Kg

Min. sale unit: 1 Pcs

Package pcs: 4 Pcs

Cod
ICA-PM 14XXL
Barcode
8051128105216
Supplier Code
105216
Weight
4.264 Kg
Min. sale unit
1 Pcs
Package pcs
4 Pcs
Anni di Garanzia: 10
Portata Kg: 10
Inclinazione Verticale: +/- 15°
Rotazione: 360°
  • Universal bracket for projectors for wall mounting
  • Easily installation, supports projectors up to 10 kg
  • Solid ball-joint structure offers 360 rotation and 15 tilting for multi-angle viewing
  • Extension rod: adjustable from 89 to 152 cm
  • Ideal for home, office and commercial applications
  • Mounting Range: minimum 150 mm, maximum 313 mm
  • With cable management
  • Color: silver / black
Description
  • Universal bracket for projectors for wall mounting
  • 4 adjustable arms for a wide range of projectors
  • Supports projectors up to 10 kg
  • Optimize visualization by adjusting the inclination and extension of the rod
  • Guarantees greater extension, up to 1520 mm from the wall
  • Easily installed, ideal for home, office and commercial applications
Specifications
  • Universal bracket for projectors for wall mounting
  • Tilt: ± 15 °
  • Rotation: 360 °
  • Supported weight: 10 kg
  • Extension rod: adjustable from 89 to 152 cm
  • Mounting Range: minimum 150 mm, maximum 313 mm
  • With cable management
  • Color: silver / black
Package Contents
  • Universal Wall Bracket for Projectors with Extra Extension
  • Fixing kit and installation instructions
Data sheet
general
Brand TECHLY Barcode 8051128105216
Weight 4.2640 The package includes • Staffa per proiettore da parete o soffitto silver • Kit di fissaggio e istruzioni per l'installazione
Years of Warranty 10 Codice Fornitore 105216
compatibility
Typology Wall mount TV Size -
Capacity Kg 10
features

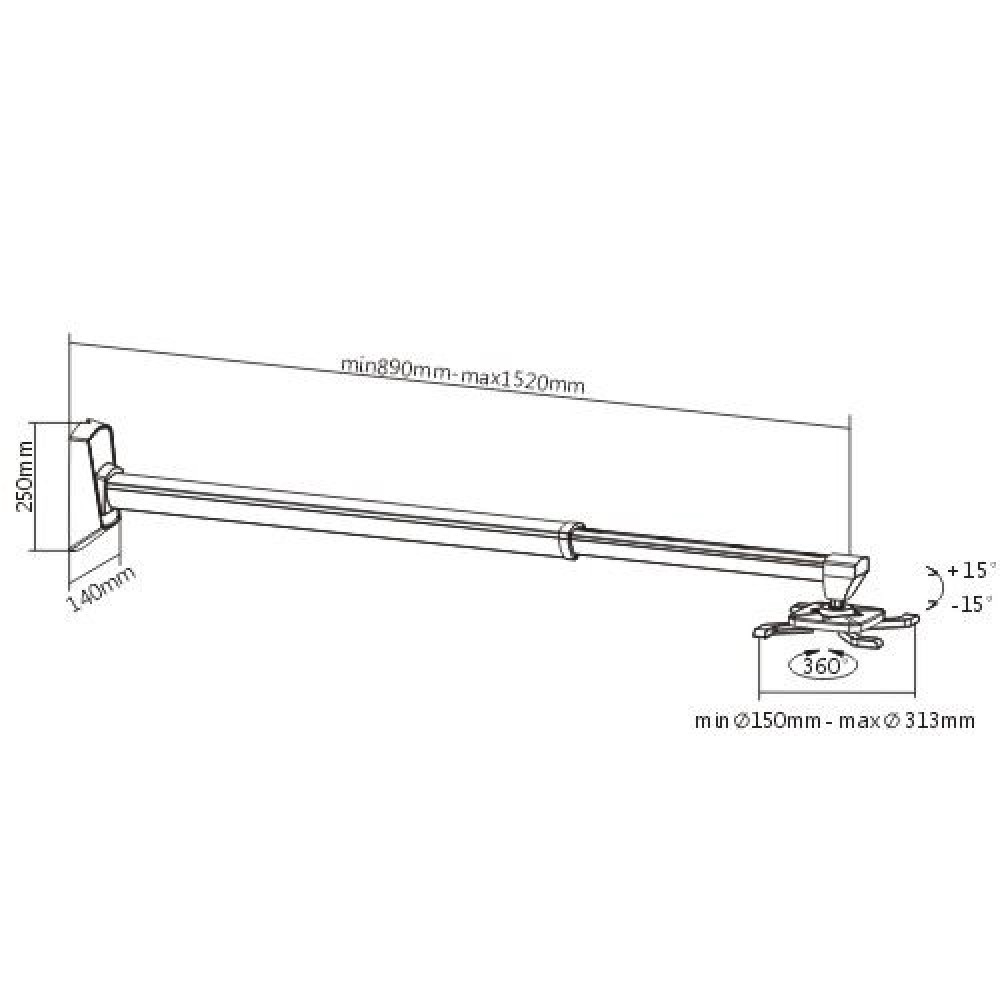

Minimum wall distance 890 mm Maximum wall distance 1520 mm
Tilt +/- 15° Swivel -
Junctions number - Rotation 360°
Color Black / Silver Levelling bubble No
Curved TV support - Security system -
Drivers and manuals
