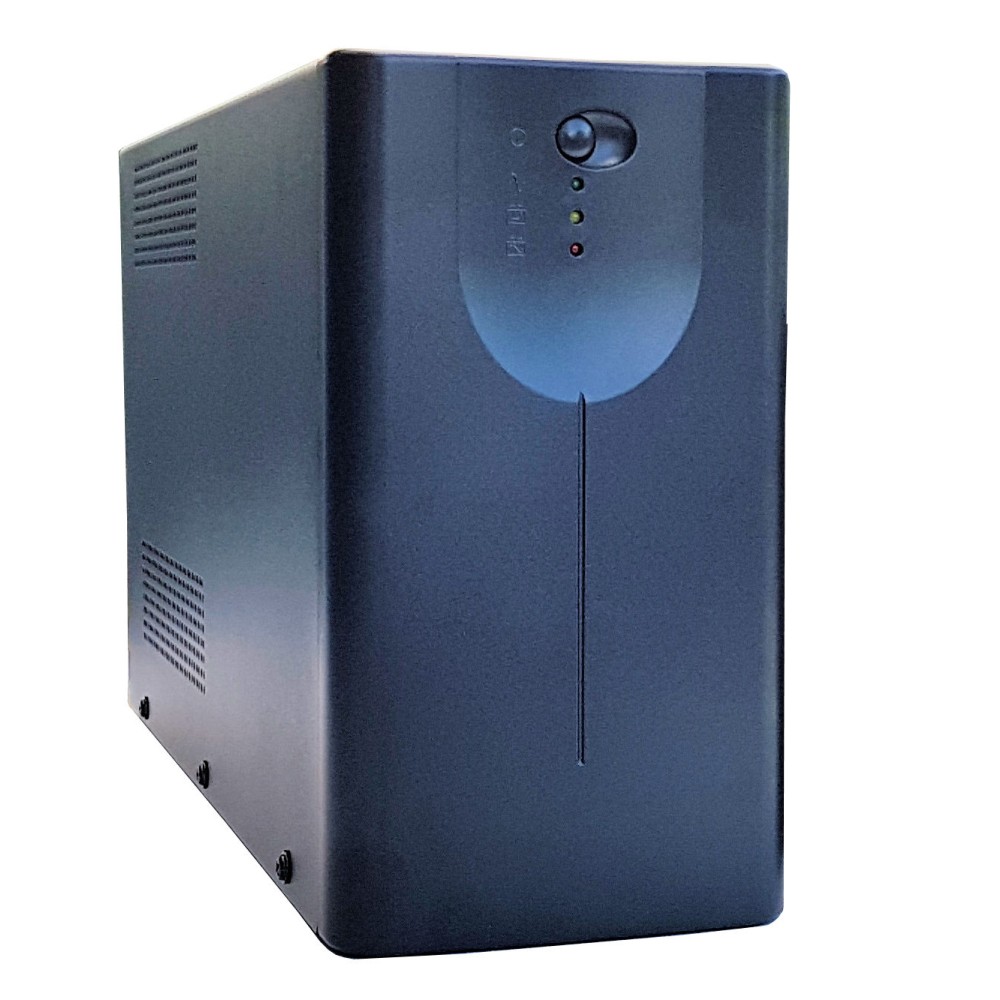

UPS 1200VA 720W
Code: IUPS-1200PC    Barcode: 8051128105247

   Supplier Code: 105247

Available

UPS 1200VA 720W

Certificazioni: CE
Certificazioni: RoHS
Anni di Garanzia: 2
Choose a different Option:

• UPS with nominal power 1200VA - 720W
• Pseudosinusoidal waveform
• With AVR voltage stabilizer
• Equipped with 1 7Ah battery, guarantees an autonomy of about 10'
• Protection against short-circuit, under / over battery voltage, overload
• Input plug: 1 x IEC 320 C14 10A
• Output sockets: 4 x IEC 320 C13 10A
• Protection of telephone and IT network through RJ11 connector
• USB communication port
• Dimensions: 225 x 125 x 390 mm

Description

Details

• Uninterruptible power supply with nominal power 1200VA - 720W
• Pseudosinusoidal waveform
• With AVR voltage stabilizer
• Equipped with 2 7Ah batteries, guarantees a range of about 10 '

Specifications
• Rated input voltage: 230 Vac
• Frequency: 50Hz or 60Hz
• VA / W power: 1200VA / 720W
• Rated output voltage: 230 Vac
• Waveform: pseudo-sinusoidal optimized for PC power supply
• Switching time: ≤10ms
• UPS control via CPU
• AVR voltage stabilizer
• Wide tolerance on input voltage without battery intervention
• Auto Restart function: automatic return to network return
• Cold Start function: possibility of switching on from a battery
• Recharge the batteries even when the UPS is off
• Telephone and computer network function via RJ11 connector
• Protection against short-circuit, under / over battery voltage, overload

Links
• Input plug: 1 x IEC 320 C14 10A
• Output sockets: 4 x IEC 320 C13 10A
• Protection of telephone and IT network through RJ11 connector
• USB communication port

Physical characteristics
• Dimensions: 225 x 125 x 390 mm
• Operating temperature: 0-40 °C
• Relative humidity: <90% RH without condensation
• Black colour

Package contents:
• 1200VA UPS
• 1 input cable 10A
• 1 10A output cable
• 1 USB and RJ11 cable
data sheet
generale
Brand
Techly Professional
Barcode
8051128105247
Weight
12.0420
Certifications
CE , RoHS
Years of Warranty
2
Codice Fornitore
105247
specifiche tecniche
UPS technology
Line Interactive
Waveform
Pseudosinusoidale ottimizzata per alimentazione PC
VA power
1200 VA
Tipologia
Desktop - Tower
Power factor
0,6
Promotion
Linea Tel./ADSL , Overload, Overvoltage, Short circuit
Input Plugs
1 IEC 320 C14
Output Socket
4 x IEC 320 C13 10A
Communications
RS232 - DB9
Display LED
No
Color
Black
ingresso
Input voltage
230 Vac
Voltage Range
No
Input frequency
50 Hz
uscita
Output voltage
230 Vac
Voltage Range
± 10 %
Output frequency
50 Hz
batteria
Battery type
2x 12V/7AH
Backup time
10 minutes
Charging time
6-8 ore al 90%
Cold start
Yes
dimensioni
Height
225 mm
Width
125 mm
Depth
390 mm
