USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections - Techly - IADAP USB31-DOCK1-1
USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections - Techly - IADAP USB31-DOCK1-1
USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections - Techly - IADAP USB31-DOCK1-0
USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections - Techly - IADAP USB31-DOCK1-1
USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections - Techly - IADAP USB31-DOCK1-2
USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections - Techly - IADAP USB31-DOCK1-3
+2
USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections - Techly - IADAP USB31-DOCK1-1
Techly
A corto di porte? Ecco come rimediare Watch the video

USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections

Cod: IADAP USB31-DOCK1

Barcode: 8051128102086

Supplier Code: 102086

Weight: 0.101 Kg

Min. sale unit: 1 Pcs

Package pcs: 40 Pcs

Cod
IADAP USB31-DOCK1
Barcode
8051128102086
Supplier Code
102086
Weight
0.101 Kg
Min. sale unit
1 Pcs
Package pcs
40 Pcs
Certificazioni: CE
Certificazioni: RoHS
Tipologia: USB
USB standard: USB 3.1
Windows 7: Yes
Windows 8: Yes
Windows 10: Yes
Mac: Yes
  • Equipped with USB-C Male input and HDMI Female, USB-A Female, USB-C Female and RJ45 Female outputs
  • USB-C port: when connecting PD Adapter it supports PD Charging with power up to 60W (20V/3A); as USB-C downstream port supports to transmit data up to 5Gbps and charge for the connected USB–C
  • USB-A port supports to transmit data up to 5Gbps and charge for the connected USB device
  • RJ45 port supports 10/100/1000Mbps bandwidth
  • HDMI port supports resolution up to 4KX2K@30HZ
  • Input: USB-C Male x1
  • Color: white
Description

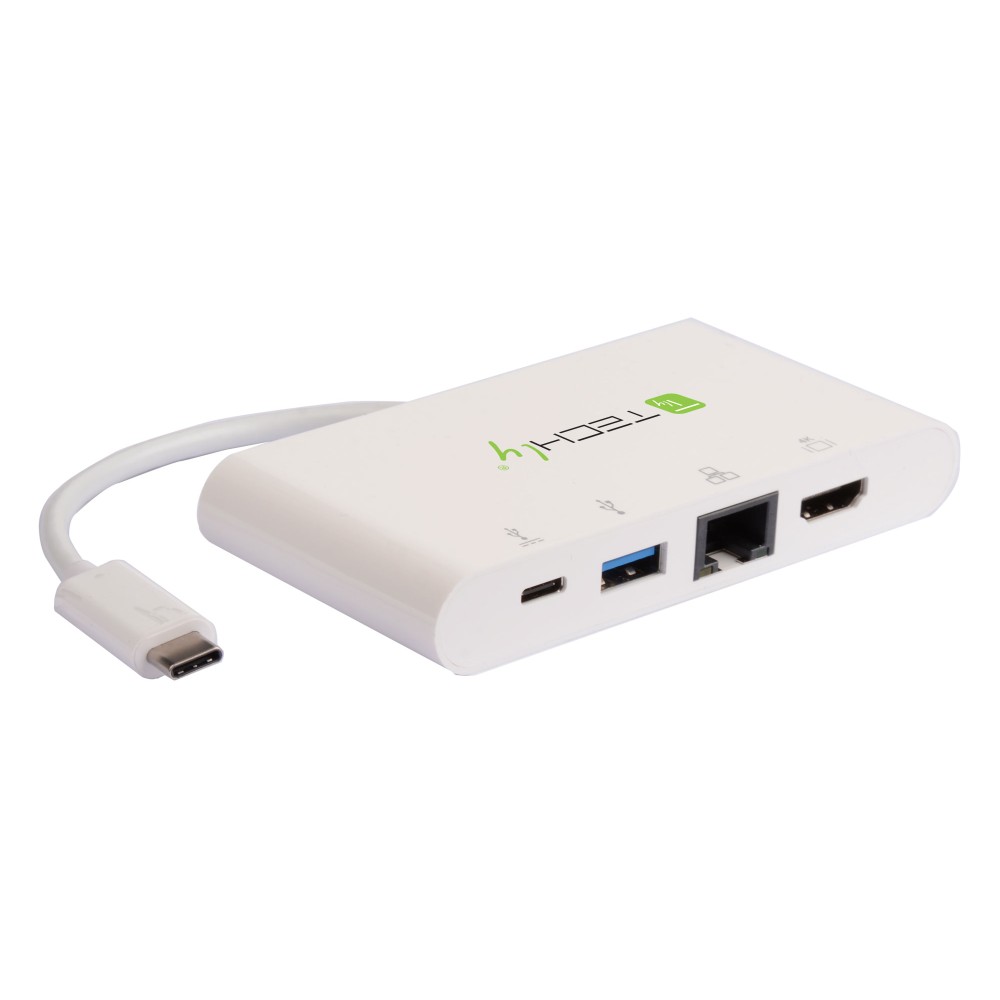

IADAP USB31-DOCK1 is a USB-C to USB 3.0 with HDMI,RJ45 and Type-C data and charging port hub. The USB3.0 port allows you to connect a USB device or another hub to the host computer; the USB-C female port supports both PD Charging and data; and the HDMI port (DP Altmode) allows you to connect an HDMI monitor so that you can watch videos or slideshows on a big screen. RJ45 allows the host PC to get access to Ethernet. It can work on New Macbook Pro, Macbook or Google new Chromebook Pixel and other USB-C supported devices.

Features
  • Equipped with USB-C Male input and HDMI Female, USB-A Female, USB-C Female and RJ45 Female outputs
  • Supports resolution up to 4KX2K@30HZ
  • Input: USB-C Male x1
  • Output: HDMI Female x1, RJ45X1, USB-C Female x1 (for data and charging), USB-A Female x1
  • Color: white
Technical specifications
  • USB-C port: when connecting PD Adapter it supports PD Charging with power up to 60W (20V/3A); as USB-C downstream port supports to transmit data up to 5Gbps and charge for the connected USB–C
  • USB-A port supports to transmit data up to 5Gbps and charge for the connected USB device
  • RJ45 port supports 10/100/1000Mbps bandwidth
  • HDMI port supports resolution up to 4KX2K@30HZ, 9Gbps bandwidth
  • Multiple USB-C interfaces support plug and play, hot swap
  • Easy to use and carry
Environmental characteristics
  • Operating Temperature: 0°C to +45°C
  • Operating Humidity: 10% to 85 % RH (no condensation)
  • Storage Temperature: -10°C to +70°C
  • Storage Humidity: 5% to 90 % RH (no condensation)
Certifications
  • FCC
  • CE
  • RAEE
Package Contents
  • USB 3.1 type-C adapter to USB3.0 with HDMI, RJ45, type C connections
  • User Manual
Data sheet
general
Brand Techly Barcode 8051128102086
Color White Certifications CE , RoHS
Codice Fornitore 102086
technical features
Typology USB USB speed 5 Gbit/s
USB 2.0 ports - USB 3.2 ports 1
USB standard USB 3.1 Supply -
Voltage - Other Features • Uscita: HDMI Femmina x1 • Uscita: RJ45X1 • Uscita: USB-C™ Femmina x1 (per dati e ricarica) • Uscita: USB-A 3.0 Femmina x1
Altro contenuto della confezione • Adattatore USB-C™ a USB-A 3.0 con connessioni HDMI, RJ45, USB-C™ • Manuale d’istruzione
compatibility
Windows 98 - Windows 2000 -
Windows XP - Windows Vista Yes
Windows 7 Yes Windows 8 Yes
Windows 10 Yes Mac Yes
Linux -
dimensions
Weight 0.1010
Drivers and manuals
