USB3.0 to IDE + SATA II Converter - TECHLY NP - IUSB3-ADAPT2-1
USB3.0 to IDE + SATA II Converter - TECHLY NP - IUSB3-ADAPT2-1
USB3.0 to IDE + SATA II Converter - TECHLY NP - IUSB3-ADAPT2-0
USB3.0 to IDE + SATA II Converter - TECHLY NP - IUSB3-ADAPT2-1
USB3.0 to IDE + SATA II Converter - TECHLY NP - IUSB3-ADAPT2-1

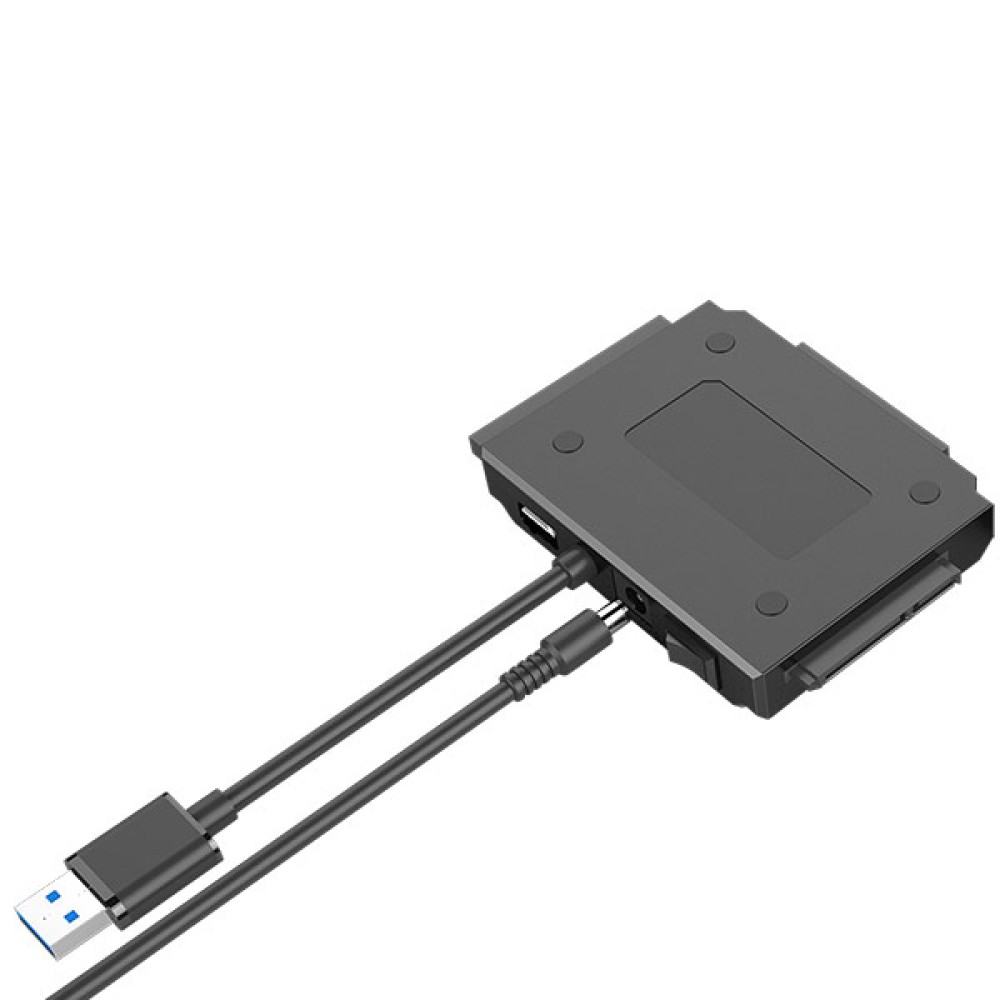

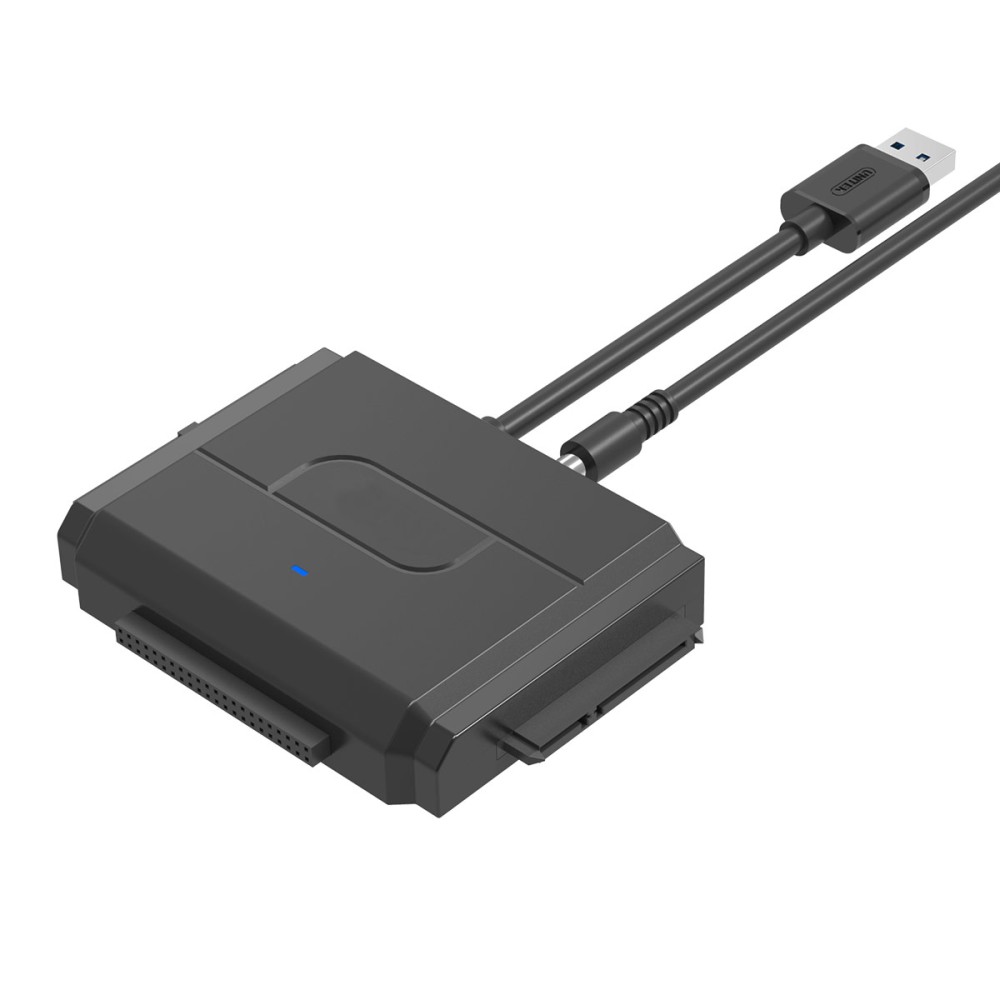

USB3.0 to IDE + SATA II Converter

Cod: IUSB3-ADAPT2

Barcode: 8051128103212

Supplier Code: 103212

Weight: 0.290 Kg

Min. sale unit: 1 Pcs

Package pcs: 20 Pcs

Cod
IUSB3-ADAPT2
Barcode
8051128103212
Supplier Code
103212
Weight
0.290 Kg
Min. sale unit
1 Pcs
Package pcs
20 Pcs
Tipo connettore A: USB Type-A
USB standard: USB 3.0
  • USB3.0 to IDE + SATA II Converter
  • Convert USB to IDE/SATA interface
  • Support SATA II (3Gbps) / SATA I (1.5Gbps)
  • Support 2.5"/3.5" HDD & SSD with any capacity
  • With USB3.0 specification, backward compatible with USB2.0/1.1
  • With sleep mode function, it’ll automatically turn to sleep mode after no action for 30 minutes
  • Plug and play, no need to install driver
Description
  • USB3.0 to IDE + SATA II Converter
  • Convert USB to IDE/SATA interface
  • Support SATA II (3Gbps) / SATA I (1.5Gbps)
  • Support 2.5"/3.5" HDD & SSD with any capacity
  • With USB3.0 specification, backward compatible with USB2.0/1.1
  • With sleep mode function, it’ll automatically turn to sleep mode after no action for 30 minutes
  • Plug and play, no need to install driver
Package Contents
  • 1 x USB3.0 to IDE + SATA II Converter
  • 1 x Power Adaptor
  • 1 x 10cm, Small 4-Pin to Big 4-Pin Power Cable
  • 1 x User Manual
Data sheet
general
Brand TECHLY NP Barcode 8051128103212
Color Black Codice Fornitore 103212
input
Connector A Type USB Type-A format A connector male
Number A Connector 1 Altri Connettori Input Alimentazione x 1 Connettore 4 pin x 1
output
Connector B Type IDE/SATA format B connector female
Number B Connector 3
technical specifications
Typology Converter max bandwidth (MHz) -
Deep Color - HDMI -
HDCP - 3D compatible -
Supported audio standards - Transmission Distance -
USB standard USB 3.0
power supply
Power supply Requested (included)
dimensions
Width 95 mm Height 16 mm
Depth 70 mm Weight 0.2900
The package includes • 1 x Convertitore da USB3.0 a IDE + SATA II • 1 x Alimentatore • 1 x Cavo adattatore 4pin 10 cm • 1 x Manuale d'istruzioni
