Video Converter from DVI-I and Audio R / L to HDMI

Cod: IDATA DVI-HDMI

Barcode: 8054529020935

Supplier Code: 020935

Weight: 0.361 Kg

Min. sale unit: 1 Pcs

Package pcs: 37 Pcs

Cod
IDATA DVI-HDMI
Barcode
8054529020935
Supplier Code
020935
Weight
0.361 Kg
Min. sale unit
1 Pcs
Package pcs
37 Pcs
Certificazioni: CE
Certificazioni: FCC
Certificazioni:
Tipo connettore B: HDMI

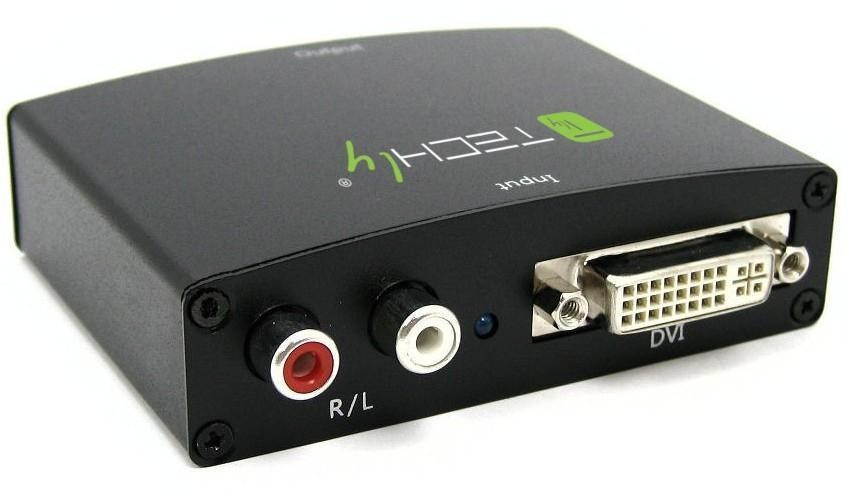

IDATA DVI-HDMI converter is designed to make your audio video equipment more comfortable, more productive and less expensive. It allows you to connect a DVI-I source and its RCA audio to an HDMI monitor or HDTV, with support for a resolution Full-HD 1080p (1920x1080).
Value alternative update the compatibility of devices, is reduced in size and provides a fast plug and play solution for connecting Mac, PC or home theater devices with DVI output (digital) to a TV or monitor with HDMI.
And 'ideal for conference rooms, school and corporate training environments.

Features
  • Supports 1080p video resolution
  • Supports 225MHz / 2.25Gbps per channel (6.75Gbps tot) of bandwidth
  • Supports Deep Color 12bit per channel (36bit tot)
  • Supports input R / L
  • Allows you to connect computers or other sources with DVI output and R / L to an HDMI display
Connections
  • Entry:
- Audio L / R Female
- DVI-I Female
- 5V
  • Output:
- HDMI 19 pin female

Operating Frequency
  • Vertical Frequency Range: 50 / 60Hz
  • Video amplifier bandwidth: 2.25Gbps / 225MHz
Resolutions (HDTV)
  • Interlaced (50 and 60 Hz): 480i, 576i, 1080i
  • Progressive (50 and 60 Hz): 480p, 576p, 720p, 1080p
LED
  • 1x Power
  • 1x connection
Supply
  • External power supply (included) 5V DC
  • Consumption 5 watts maximum
Environmental Characteristics
  • Operating Temperature: 0 ℃ to + 70 ℃
  • Operating Humidity: 10% to 85% (non-condensing)
  • Storage temperature: -10 ℃ to + 80 ℃
  • Storage Humidity: 5% to 90% (non-condensing)
Dimensions
  • Width: 88 mm
  • Depth: 68 mm
  • Height: 25.5 mm
Certifications
  • EC
  • FCC
Package Contents
  • Converter DVI + R / L to HDMI
  • Power supply 5V DC
  • Manual
Description
IDATA DVI-HDMI converter is designed to make your audio video equipment more comfortable, more productive and less expensive. It allows you to connect a DVI-I source and its RCA audio to an HDMI monitor or HDTV, with support for a resolution Full-HD 1080p (1920x1080).
Value alternative update the compatibility of devices, is reduced in size and provides a fast plug and play solution for connecting Mac, PC or home theater devices with DVI output (digital) to a TV or monitor with HDMI.
And 'ideal for conference rooms, school and corporate training environments.

Features
  • Supports 1080p video resolution
  • Supports 225MHz / 2.25Gbps per channel (6.75Gbps tot) of bandwidth
  • Supports Deep Color 12bit per channel (36bit tot)
  • Supports input R / L
  • Allows you to connect computers or other sources with DVI output and R / L to an HDMI display
Connections
  • Entry:
- Audio L / R Female
- DVI-I Female
- 5V
  • Output:
- HDMI 19 pin female

Operating Frequency
  • Vertical Frequency Range: 50 / 60Hz
  • Video amplifier bandwidth: 2.25Gbps / 225MHz
Resolutions (HDTV)
  • Interlaced (50 and 60 Hz): 480i, 576i, 1080i
  • Progressive (50 and 60 Hz): 480p, 576p, 720p, 1080p
LED
  • 1x Power
  • 1x connection
Supply
  • External power supply (included) 5V DC
  • Consumption 5 watts maximum
Environmental Characteristics
  • Operating Temperature: 0 ℃ to + 70 ℃
  • Operating Humidity: 10% to 85% (non-condensing)
  • Storage temperature: -10 ℃ to + 80 ℃
  • Storage Humidity: 5% to 90% (non-condensing)
Dimensions
  • Width: 88 mm
  • Depth: 68 mm
  • Height: 25.5 mm
Certifications
  • EC
  • FCC
Package Contents
  • Converter DVI + R / L to HDMI
  • Power supply 5V DC
  • Manual
Data sheet
general
Brand Techly Np Barcode 8054529020935
Certifications CE , FCC , RoHS Color Black
Codice Fornitore 020935
input
Connector A Type DVI-I format A connector female
Number A Connector 1 Altri Connettori Input - audio L/R Femmina - alimentazione 5V
output
Connector B Type HDMI format B connector female
Number B Connector 1
technical specifications
Typology Converter Max Video Resolution Full HD 1920 x 1080
max bandwidth (MHz) 225 MHz Deep Color 12 bit
Supported audio standards Yes
power supply
Power supply Requested (included) Consumo energetico 5 Watt max.
dimensions
Width 88 mm Height 25,5 mm
Depth 68 mm Weight 0.3610
The package includes • Convertitore DVI+R/L a HDMI • Alimentatore 5V DC • Manuale d'uso
