Wall Mount Cabinet 19" 13U IP65 Blind Door Gray 200mm depth - Techly Professional - I-CASE IP-1320GC-1
Wall Mount Cabinet 19" 13U IP65 Blind Door Gray 200mm depth - Techly Professional - I-CASE IP-1320GC-1
Wall Mount Cabinet 19" 13U IP65 Blind Door Gray 200mm depth - Techly Professional - I-CASE IP-1320GC-0
Wall Mount Cabinet 19" 13U IP65 Blind Door Gray 200mm depth - Techly Professional - I-CASE IP-1320GC-1
Wall Mount Cabinet 19" 13U IP65 Blind Door Gray 200mm depth - Techly Professional - I-CASE IP-1320GC-2
Wall Mount Cabinet 19" 13U IP65 Blind Door Gray 200mm depth - Techly Professional - I-CASE IP-1320GC-1
Techly Professional

Wall Mount Cabinet 19" 13U IP65 Blind Door Gray 200mm depth

Cod: I-CASE IP-1320GC

Barcode: 8051128102130

Supplier Code: 102130

Weight: 26.103 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE IP-1320GC
Barcode
8051128102130
Supplier Code
102130
Weight
26.103 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Grado di protezione IP: 65
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Wall mount cabinet 13 units with a single port in high steel IP65 protection for installation in extreme conditions (dusty, salt spray ..)
  • Closing with key double bar ø 3mm System
  • Pair 19 "adjustable front
  • Cable Entry Plate on the basis protected by seal
  • Degree of protection IP65 according to IEC EN62208; 60529
  • Degree of resistance to impact IK10 according to IEC EN62208; EN 50102
  • Color: RAL 7035 (gray)
  • Dimensions: 600x600x200 mm (HxWxD)
Description
  • Wall mount cabinet 13 units with a single port in high steel IP65 protection for installation in extreme conditions (dusty, salt spray ..): it allows you to protect the equipment installed inside from dust and water
  • Body and door in 15/10 sheet steel; Full cash sendzimir profiles fixed on the door
  • Painted with epoxy polyester powder
  • Closing with key double bar ø 3mm System
  • Pair 19" adjustable front
  • Cable Entry Plate on the basis protected by seal
  • Degree of protection IP65 according to IEC EN62208; 60529
  • Degree of resistance to impact IK10 according to IEC EN62208; EN 50102
  • Color: RAL 7035 (gray)
  • Dimensions: 600x600x200 mm (HxWxD)
Certification
  • Compliance with following norms: EN 62208, EN60529, UNI EN ISO 9001:2008
  • Compliance with norm UL508A, CSA C22.2 No.14

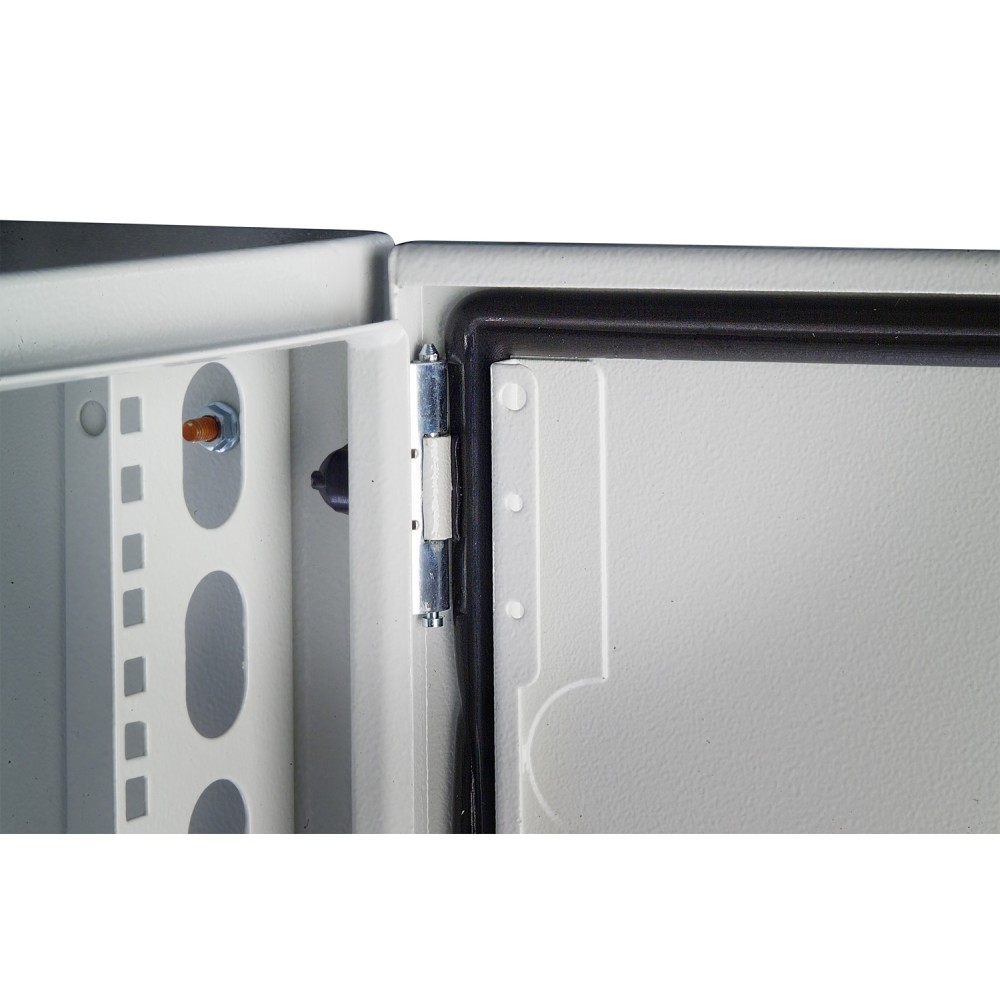

* The picture is illustrative and only intended to highlight the structure of the cabinet; color and size refer to the product page
Data sheet
general
Brand Techly Professional Barcode 8051128102130
Typology Wall mount Rack inches 19"
Assembly Assembled Units 13
Color Grey Ingress Protection IP 65
Ability to static load - Certifications ISO 9001, EN 60529
Years of Warranty 15 Codice Fornitore 102130
dimensions
Rack width 600 mm Rack depth 200 mm
Height 600 mm Weight 26.1030
side panels
Appearance Blind Removable No
Closure type -
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Blind Removable Yes
Door material Sheet Reversible Yes
Closure type Lock Locking points 2
Maximum aperture -
roof
Prepared for ventilation No Prepared for Cable Input No
uprights
Front No Rear No
included accessories
Leveling feet No Base No
Wheel No Uprights 10''/19'' -
Brushes hold powder No Grounding kit No
