Wall Rack 19" Cabinet 10U Single Section D 500mm Black Blind Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK5C-1
Wall Rack 19" Cabinet 10U Single Section D 500mm Black Blind Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK5C-1
Wall Rack 19" Cabinet 10U Single Section D 500mm Black Blind Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK5C-0
Wall Rack 19" Cabinet 10U Single Section D 500mm Black Blind Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK5C-1
Techly Professional

Wall Rack 19" Cabinet 10U Single Section D 500mm Black Blind Door

Cod: I-CASE EW-2010BK5C

Barcode: 8051128107517

Supplier Code: 107517

Weight: 21.000 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE EW-2010BK5C
Barcode
8051128107517
Supplier Code
107517
Weight
21.000 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 50 kg
Certificazioni: CE
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Wall unit with a single section 10 units with sturdy painted steel structure
  • Safety blind door, easily removable and reversible, opening angle greater than 210°, key lock
  • Fixed blind rear panel with holes for quick wall installation
  • Removable blind side panels with key lock and ventilation slots
  • Two pairs of 19" uprights, of which the front ones can be adjusted in depth
  • Threaded holes for feet or wheels (optional not included)
  • RAL 9005 color (Black)
  • Dimensions: 523x600x500 mm (HxWxD)

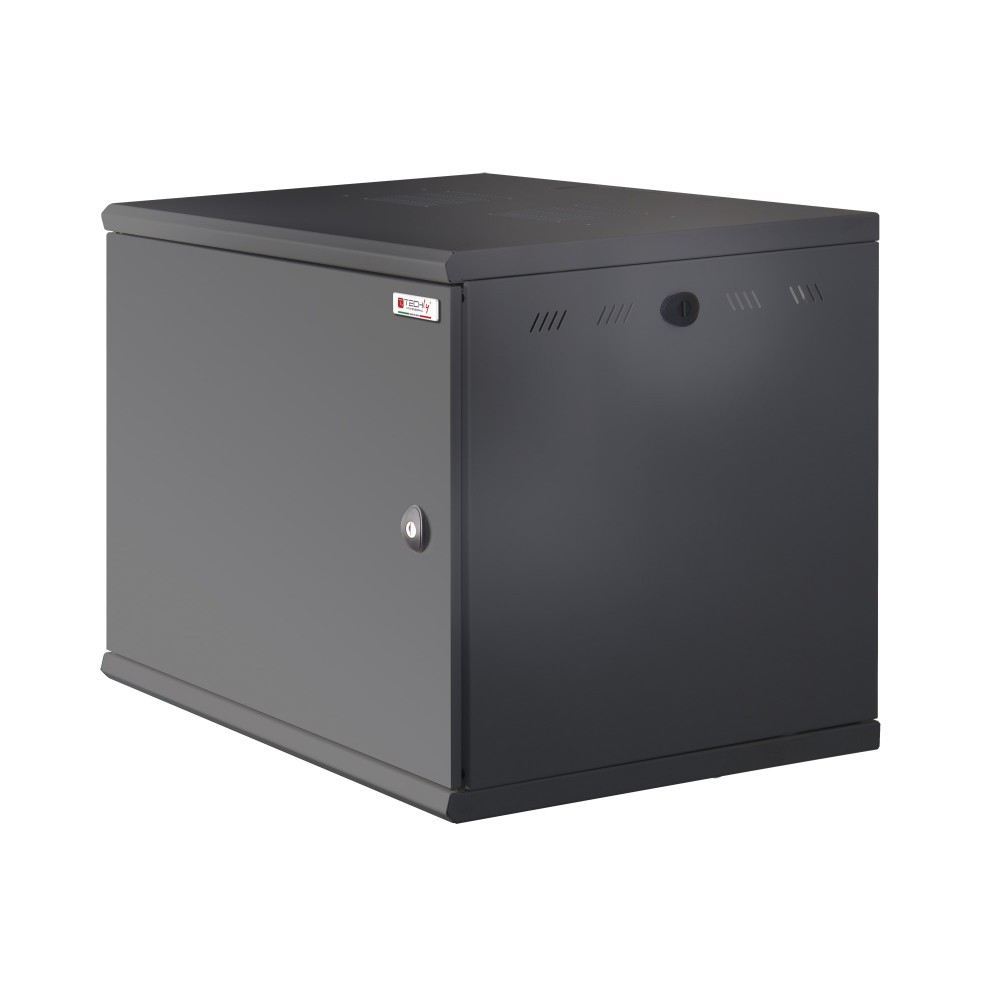

* The image is indicative and has the sole purpose of highlighting the cabinet structure; for color and dimensions refer to the product sheet
Description
  • Wall unit with a single section 10 units with sturdy painted steel structure
  • Blind door conforming to EN UNI 12150-1, easily removable and reversible, opening angle greater than 210°, key lock
  • Fixed blind rear panel with holes for quick wall installation
  • Removable blind side panels with key lock and ventilation slots
  • Predisposition for cable entry on the base and on the roof using pre-cut profiles (210 x 50 mm)
  • Ready for installation of 2 120 mm fans
  • Pair of front uprights 19" in welded steel, painted with metallic powder, adjustable in depth (useful depth: minimum 240 mm, maximum 360 mm)
  • Pair of 19" fixed rear uprights
  • Kit and earthing cables included in the supply
  • Static capacity: 50 kg
  • Threaded holes for feet or wheels (optional not included)
  • Protection degree: IP20 according to EN 60529 standard
  • RAL 9005 color (Black)
  • Dimensions: 523x600x500 mm (HxWxD)
Certification
  • CE certification according to EN 62208 standard
  • Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; 60529; EN12150-1
  • Compliance with the UNI EN ISO 9001: 2015 standard
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128107517
Typology Wall mount Rack inches 19"
Assembly Assembled Units 10
Color Black Ingress Protection IP 20
Ability to static load 50 kg Certifications CE , ISO 9001, EN 60529 , EN 61439 , EN 62208, EN12150 , IEC 297 , IEC 297-1 , IEC 297-2 , IEC 297-3
Years of Warranty 15 Codice Fornitore 107517
dimensions
Rack width 600 mm Rack depth 500 mm
Height 523 mm Weight 21.0000
side panels
Appearance Blind Removable Yes
Closure type Key
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Blind Removable Yes
Door material Sheet Reversible Yes
Closure type Lock Locking points 1
Maximum aperture 210°
roof
Prepared for ventilation Yes Prepared for Cable Input Yes
uprights
Front 2 adjustable Rear 2 fixed
included accessories
Leveling feet Optional Base No
Wheel No Uprights 10''/19'' Front and rear
Brushes hold powder No Grounding kit Yes
