Wall Rack 19" Wall Mounted 10U Single Section D 600mm Black Grille Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK6V-1
Wall Rack 19" Wall Mounted 10U Single Section D 600mm Black Grille Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK6V-1
Wall Rack 19" Wall Mounted 10U Single Section D 600mm Black Grille Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK6V-0
Wall Rack 19" Wall Mounted 10U Single Section D 600mm Black Grille Door - TECHLY PROFESSIONAL - I-CASE EW-2010BK6V-1
Techly Professional

Wall Rack 19" Wall Mounted 10U Single Section D 600mm Black Grille Door

Cod: I-CASE EW-2010BK6V

Barcode: 8051128107548

Supplier Code: 107548

Weight: 22.008 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE EW-2010BK6V
Barcode
8051128107548
Supplier Code
107548
Weight
22.008 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 50 kg
Certificazioni: CE
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Wall unit with a single section 10 units with sturdy painted steel structure
  • Door grilled at 75% to facilitate heat exchange, easily removable and reversible, opening angle greater than 210°, key lock
  • Fixed blind rear panel with holes for quick wall installation
  • Removable blind side panels with key lock and ventilation slots
  • Two pairs of 19" uprights, of which the front ones can be adjusted in depth
  • Threaded holes for feet or wheels (optional not included)
  • RAL 9005 color (Black)
  • Dimensions: 523x600x600 mm (AxLxP)

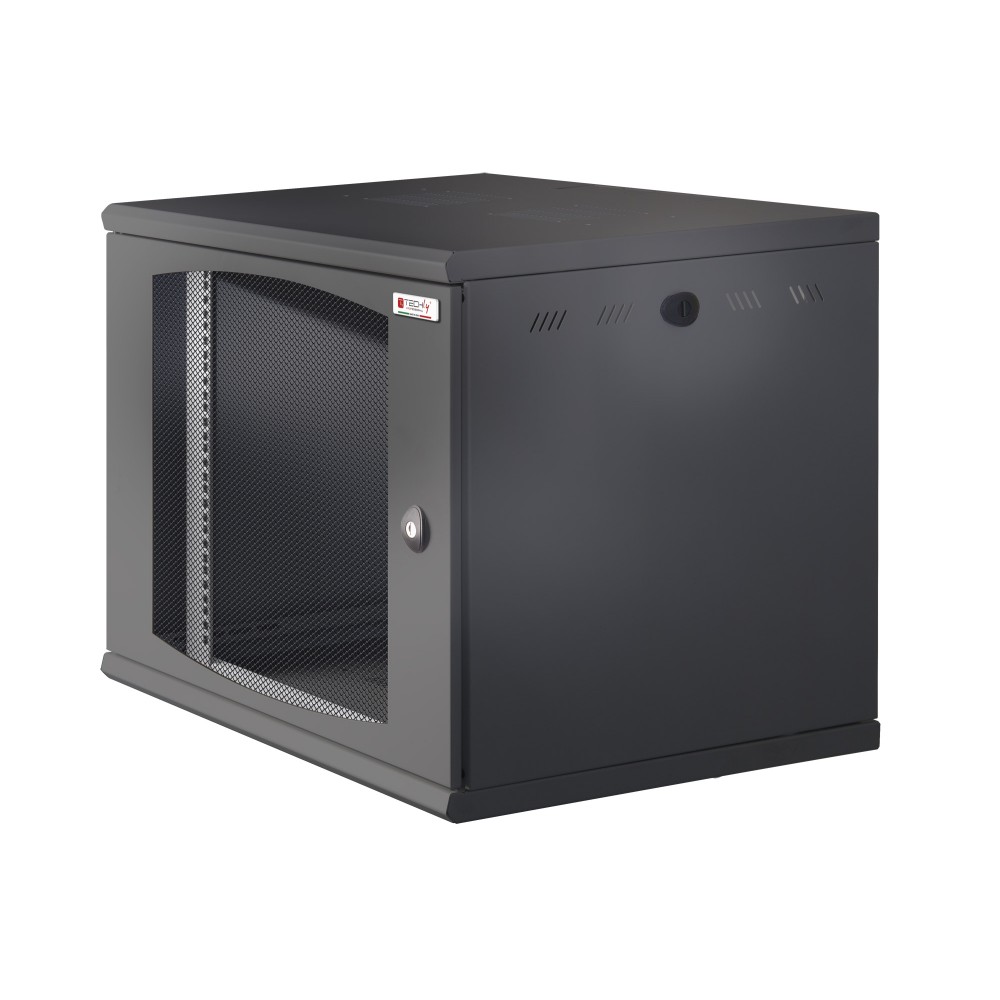

* The image is indicative and has the sole purpose of highlighting the cabinet structure; for color and dimensions refer to the product sheet

• Refurbished product
** This is an item with damaged packaging. It may contain one or more defects caused by transport, such as small deformations of the sheet or repairs carried out with painting of small parts, but the functionality and characteristics of the cabinet remain unchanged thanks to the repair performed. The selling price is certainly very advantageous, since a minimum discount of 30% is guaranteed compared to the original price. Detailed photos can be requested at the e-mail address: assistenza@icintracom.it.
Description
  • Wall unit with a single section 10 units with sturdy painted steel structure
  • Door grilled at 75% to facilitate heat exchange, easily removable and reversible, opening angle greater than 210°, key lock
  • Fixed blind rear panel with holes for quick wall installation
  • Removable blind side panels with key lock and ventilation slots
  • Predisposition for cable entry on the base and on the roof using pre-cut profiles (210 x 50 mm)
  • Ready for installation of 2 120 mm fans
  • Pair of front uprights 19" in welded steel, painted with metallic powder, adjustable in depth (useful depth: minimum 240 mm, maximum 360 mm)
  • Pair of 19" fixed rear uprights
  • Kit and earthing cables included in the supply
  • Static capacity: 50 kg
  • Threaded holes for feet or wheels (optional not included)
  • Protection degree: IP20 according to EN 60529 standard
  • RAL 9005 color (Black)
  • Dimensions: 523x600x600 mm (AxLxP)
Certification
  • CE certification according to EN 62208 standard
  • Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; 60529; EN12150-1
  • Compliance with the UNI EN ISO 9001: 2015 standard
• Refurbished product
** This is an item with damaged packaging. It may contain one or more defects caused by transport, such as small deformations of the sheet or repairs carried out with painting of small parts, but the functionality and characteristics of the cabinet remain unchanged thanks to the repair performed. The selling price is certainly very advantageous, since a minimum discount of 30% is guaranteed compared to the original price. Detailed photos can be requested at the e-mail address: assistenza@icintracom.it.
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128107548
Typology Wall mount Rack inches 19"
Assembly Assembled Units 10
Color Black Ingress Protection IP 20
Ability to static load 50 kg Certifications CE , ISO 9001, EN 60529 , EN 61439 , EN 62208, EN12150 , IEC 297 , IEC 297-1 , IEC 297-2 , IEC 297-3
Years of Warranty 15 Codice Fornitore 107548
dimensions
Rack width 600 mm Rack depth 600 mm
Height 523 mm Profondità utile 460
Weight 22.0080
side panels
Appearance Blind Removable Yes
Closure type Key
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance a swing, 75% grilled Removable Yes
Door material Sheet Reversible Yes
Closure type Lock Locking points 1
Maximum aperture 210°
roof
Prepared for ventilation Yes Prepared for Cable Input Yes
uprights
Front 2 adjustable Rear 2 fixed
included accessories
Leveling feet Optional Base No
Wheel No Uprights 10''/19'' Front and rear
Brushes hold powder No Grounding kit Yes
