Wall Rack 19" Wall Mounted 13U single section D 600mm Black Grille Door
New
Code: I-CASE EW-2013BK6V    Barcode: 8051128107562

Available

Wall Rack 19" Wall Mounted 13U single section D 600mm Black Grille Door

Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 50 kg
Origine Merce: Made in Italy
Certificazioni: CE
Certificazioni: ISO 9001
Anni di Garanzia: 2
Choose a different Option:

• Wall unit with a single section 13 units with sturdy painted steel structure
• Door grilled at 75% to facilitate heat exchange, easily removable and reversible, opening angle greater than 210°, key lock
• Fixed blind rear panel with holes for quick wall installation
• Removable blind side panels with key lock and ventilation slots
• Two pairs of 19" uprights, of which the front ones can be adjusted in depth
• Holes for installation of feet (optional not included)
• Color: RAL 9005 (black)
• Dimensions: 655x600x600 mm (AxLxP)

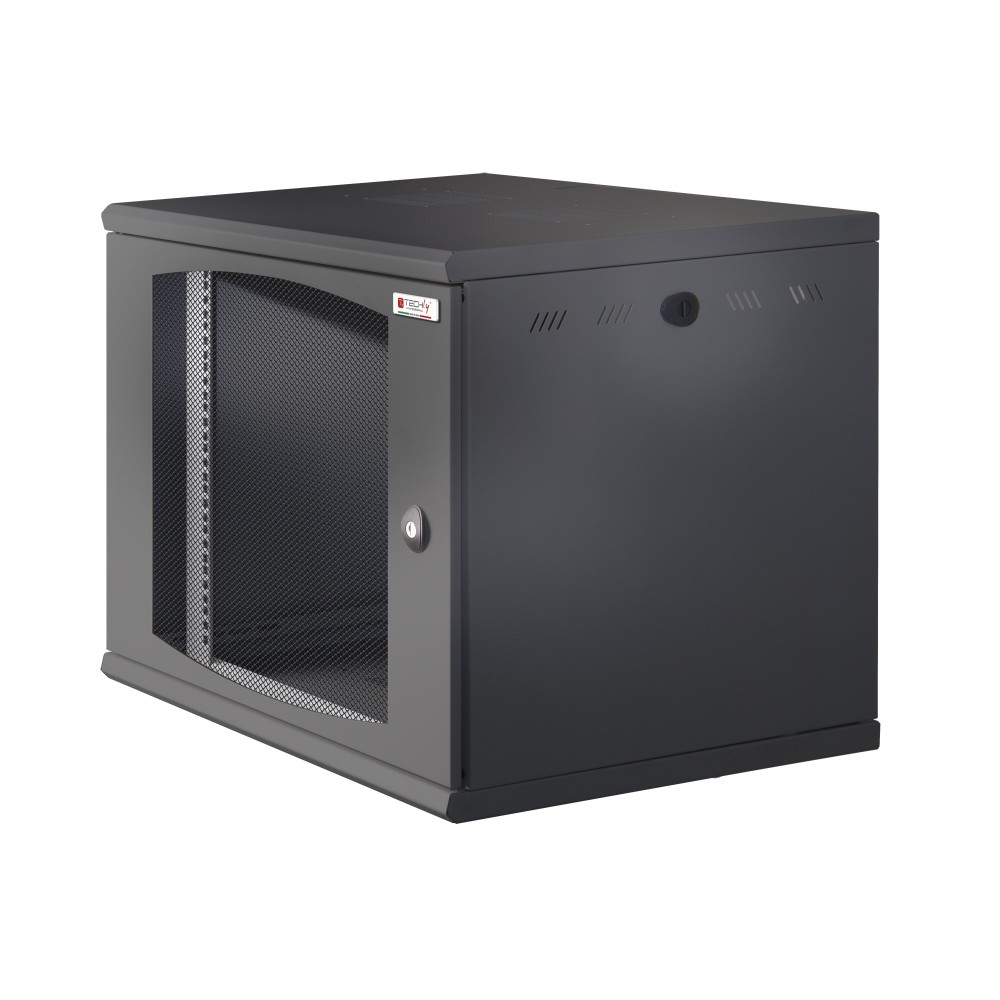

* The image is indicative and has the sole purpose of highlighting the cabinet structure; for color and dimensions refer to the product sheet

Description

Details

• Wall unit with a single section 13 units with sturdy painted steel structure
• Door grilled at 75% to facilitate heat exchange, complying with EN UNI 12150-1, easily removable and reversible, opening angle greater than 210°, key lock
• Fixed blind rear panel with holes for quick wall installation
• Removable blind side panels with key lock and ventilation slots
• Predisposition for cable entry on the base and on the roof using pre-cut profiles (210 x 50 mm)
• Ready for installation of 2 120 mm fans
• Pair of front uprights 19" in welded steel, painted with metallic powder, adjustable in depth (useful depth: minimum 240 mm, maximum 360 mm)
• Pair of 19" fixed rear uprights
• Kit and earthing cables included in the supply
• Static capacity: 50 kg
• Holes for installation of feet (optional not included)
• Protection degree: IP20 according to EN 60529 standard
• Color: RAL 9005 (black)
• Dimensions: 655x600x600 mm (AxLxP)

Certification
• CE certification according to EN 62208 standard
• Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; 60529; EN12150-1
• Compliance with the UNI EN ISO 9001: 2015 standard
data sheet
generale
Brand
Techly Professional
Vendor code
107562
Barcode
8051128107562
Typology
Wall mount
Rack inches
19"
Assembly
Assembled
Units
13
Color
Black
Ingress Protection IP
20
Ability to static load
50 kg
Goods origin
Made in Italy
Certifications
CE , ISO 9001, EN 60529 , EN 61439 , EN 62208, EN12150 , IEC 297 , IEC 297-1 , IEC 297-2 , IEC 297-3
Years of Warranty
2
dimensioni
Rack width
600 mm
Rack depth
600 mm
Height
655 mm
Profondità utile
360 mm
Weight
27.0000
pannelli laterali
Appearance
Blind
Removable
Yes
Closure type
Key
pannello posteriore
Appearance
Blind
Removable
No
Closing handle points
No
Maximum aperture
No
porta anteriore
Appearance
a swing, 75% grilled
Removable
Yes
Door material
Sheet
Reversible
Yes
Closure type
Lock
Locking points
1
Maximum aperture
210°
tetto
Prepared for ventilation
Yes
Prepared for Cable Input
Yes
montanti
Front
2 adjustable
Rear
2 fixed
accessori compresi
Leveling feet
Optional
Base
No
Wheel
No
Uprights 10''/19''
Front and rear
Brushes hold powder
No
Grounding kit
Yes
Accessories
