Wall Rack 19" Wall Mounted 16U Single Section D 600mm Black Grille Door
Code: I-CASE EW-2016BK6V    Barcode: 8051128107586

   Supplier Code: 107586

Available

Wall Rack 19" Wall Mounted 16U Single Section D 600mm Black Grille Door

Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 50 kg
Certificazioni: CE
Certificazioni: ISO 9001
Anni di Garanzia: 15
Choose a different Option:

• Wall unit with a single section 16 units with sturdy painted steel structure
• Door grilled at 75% to facilitate heat exchange, easily removable and reversible, opening angle greater than 210°, key lock
• Fixed blind rear panel with holes for quick wall installation
• Removable blind side panels with key lock and ventilation slots
• Two pairs of 19" uprights, of which the front ones can be adjusted in depth
• Holes for installation of feet (optional not included)
• Color: RAL 9005 (black)
• Dimensions: 787x600x600 mm (HxWxD)

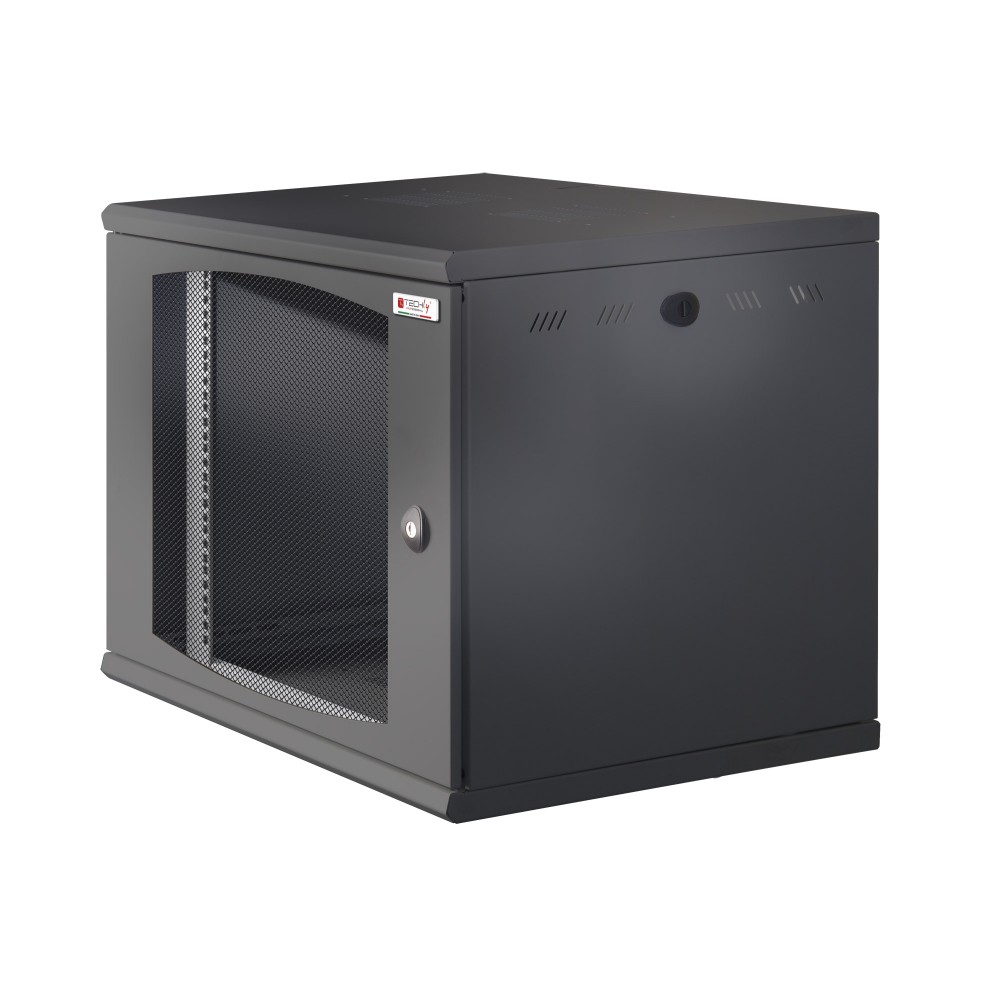

* The image is indicative and has the sole purpose of highlighting the cabinet structure; for color and dimensions refer to the product sheet

    Description

    Details

    • Wall unit with a single section 16 units with sturdy painted steel structure
    • Door grilled at 75% to facilitate heat exchange, easily removable and reversible, opening angle greater than 210°, key lock
    • Fixed blind rear panel with holes for quick wall installation
    • Removable blind side panels with key lock and ventilation slots
    • Predisposition for cable entry on the base and on the roof using pre-cut profiles (210 x 50 mm)
    • Ready for installation of 2 120 mm fans
    • Pair of front uprights 19 "in welded steel, painted with metallic powder, adjustable in depth (useful depth: minimum 240 mm, maximum 360 mm)
    • Pair of 19" fixed rear uprights
    • Kit and earthing cables included in the supply
    • Static capacity: 50 kg
    • Holes for installation of feet (optional not included)
    • Protection degree: IP20 according to EN 60529 standard
    • Color: RAL 9005 (black)
    • Dimensions: 787x600x600 mm (HxWxD)

    Certification
    • CE certification according to EN 62208 standard
    • Compliance with IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; 60529; EN12150-1
    • Compliance with the UNI EN ISO 9001: 2015 standard
    data sheet
    generale
    Brand
    Techly Professional
    Barcode
    8051128107586
    Typology
    Wall mount
    Rack inches
    19"
    Assembly
    Assembled
    Units
    16
    Color
    Black
    Ingress Protection IP
    20
    Ability to static load
    50 kg
    Certifications
    CE , ISO 9001, EN 60529 , EN 62208, EN12150 , IEC 297 , IEC 297-1 , IEC 297-2 , IEC 297-3
    Years of Warranty
    15
    Codice Fornitore
    107586
    dimensioni
    Rack width
    600 mm
    Rack depth
    600 mm
    Height
    787 mm
    Profondità utile
    460 mm
    Weight
    28.9660
    pannelli laterali
    Appearance
    Blind
    Removable
    Yes
    Closure type
    Key
    pannello posteriore
    Appearance
    Blind
    Removable
    No
    Closing handle points
    No
    Maximum aperture
    No
    porta anteriore
    Appearance
    a swing, 75% grilled
    Removable
    Yes
    Door material
    Sheet
    Reversible
    Yes
    Closure type
    Lock
    Locking points
    1
    Maximum aperture
    210°
    tetto
    Prepared for ventilation
    Yes
    Prepared for Cable Input
    Yes
    montanti
    Front
    2 adjustable
    Rear
    2 fixed
    accessori compresi
    Leveling feet
    Optional
    Base
    No
    Wheel
    No
    Uprights 10''/19''
    Front and rear
    Brushes hold powder
    No
    Grounding kit
    Yes
