Techly Professional
Wall Rack Cabinet 10" 6U Blind Door Black - TECHLY PROFESSIONAL - I-CASE EM-1006BKCTY-1
Wall Rack Cabinet 10" 6U Blind Door Black - TECHLY PROFESSIONAL - I-CASE EM-1006BKCTY-1
Wall Rack Cabinet 10" 6U Blind Door Black - TECHLY PROFESSIONAL - I-CASE EM-1006BKCTY-0
Wall Rack Cabinet 10" 6U Blind Door Black - TECHLY PROFESSIONAL - I-CASE EM-1006BKCTY-1
Wall Rack Cabinet 10" 6U Blind Door Black - TECHLY PROFESSIONAL - I-CASE EM-1006BKCTY-2
Wall Rack Cabinet 10" 6U Blind Door Black - TECHLY PROFESSIONAL - I-CASE EM-1006BKCTY-3
+4
Wall Rack Cabinet 10" 6U Blind Door Black - TECHLY PROFESSIONAL - I-CASE EM-1006BKCTY-1
Techly Professional
Armadi rack a muro per piccole reti | Techly Professional Watch the video

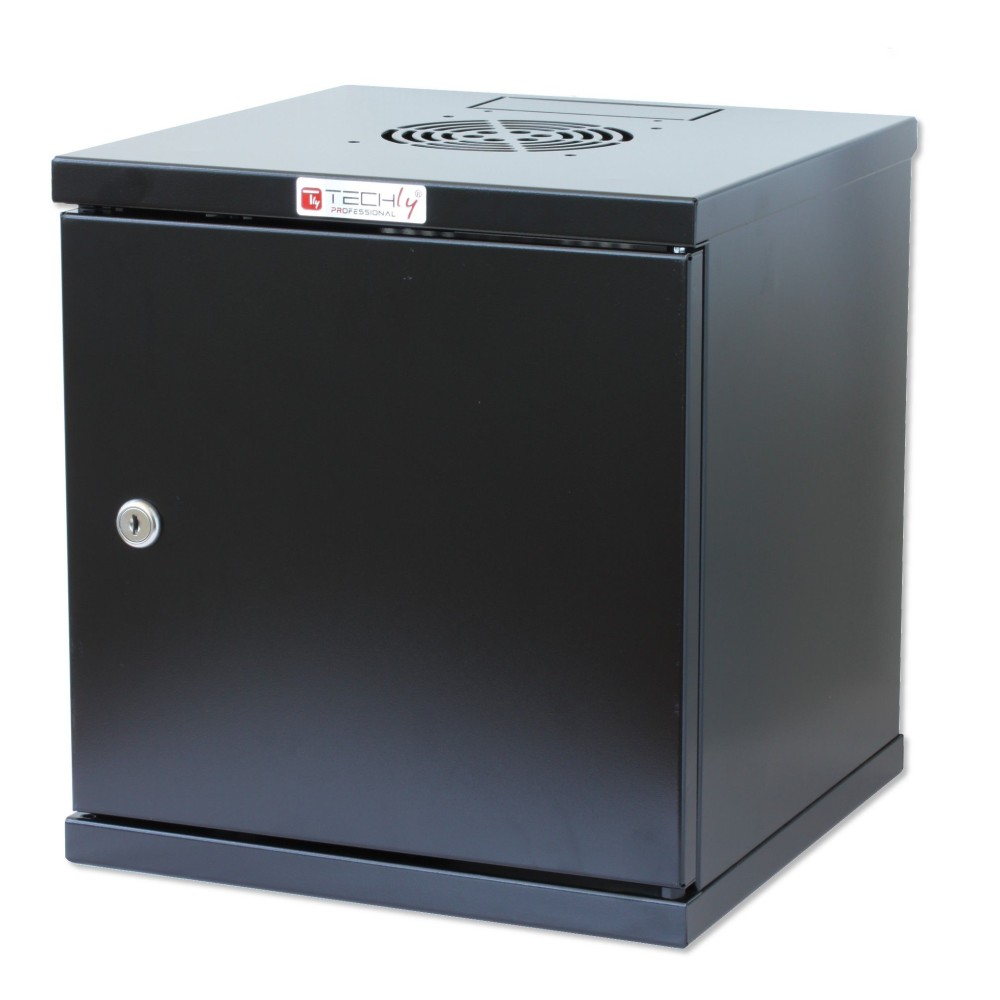

Wall Rack Cabinet 10" 6U Blind Door Black

Cod: I-CASE EM-1006BKCTY

Barcode: 8054529026715

Supplier Code: 026715

Weight: 8.400 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Available

Incl. Tax: €101.20

Excl. Tax: €82.95 + VAT

Cod
I-CASE EM-1006BKCTY
Barcode
8054529026715
Supplier Code
026715
Weight
8.400 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Add to Compare
Shipping from €8.30 VAT excluded
Order now and we'll ship tomorrow
Made easy
Secure payments
Pollici Rack: 10''
Grado di protezione IP: 20
Capacità di portata statica: 30 kg
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Wall Rack Cabinet with one section 6 units for small networks
  • Blind Door easily removable and reversible, with 230 ° opening angle, key lock
  • Fixed side blind panels
  • A pair of 10 "front uprights adjustable in depth
  • Optional cable entry on the roof and on the basis
  • Preparation for the installation of a 120 mm fan
  • Rack cabinet already assembled
  • Color: RAL 9005 (black)
  • Dimensions: 320x300x300 mm (HxWxD)
Description
  • Wall Rack Cabinet with a single section 10 '6 units for small networks
  • Solid welded cold-rolled steel
  • Blind Door easily removable and reversible, with 230 ° opening angle, key lock
  • Fixed side blind panels
  • Prepared for cable entry in the base and the roof via knockouts profiles (110 x 40 mm)
  • Preparation for the installation of a 120 mm fans
  • A pair of uprights 10 "1.5 mm, adjustable in depth (maximum usable depth 250 mm, 20 mm available space between the upright and fully advanced with the door upright)
  • Rack cabinet already assembled
  • Static load: 30 kg
  • Comes standard mounting kit with screws and nuts
  • RAL 9005 (black)
  • Dimensions: 320x300x300 mm (HxWxD)
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8054529026715
Typology Wall mount Rack inches 10''
Assembly Assembled Units 6
Color Black Ingress Protection IP 20
Ability to static load 30 kg Certifications ISO 9001
Years of Warranty 15 Codice Fornitore 026715
dimensions
Rack width 300 mm Rack depth 300 mm
Height 320 mm Profondità utile 250 mm
Weight 8.4000
side panels
Appearance Blind Removable No
Closure type No
rear panel
Appearance Open Removable -
Closing handle points - Maximum aperture -
front door
Appearance Blind Removable Yes
Door material Sheet Reversible Yes
Closure type Padlock Locking points 1
Maximum aperture 230°
roof
Prepared for ventilation Yes Prepared for Cable Input Yes
uprights
Front 2 adjustable Rear No
included accessories
Leveling feet No Base No
Wheel No Uprights 10''/19'' Anteriors
Brushes hold powder No Grounding kit No
The package includes Kit dadi e viti per il montaggio; Include coppia di chiavi
