Wall Rack Cabinet 19" 12 units D450 to Assemble Black

Wall Rack Cabinet 19" 12 units D450 to Assemble Black

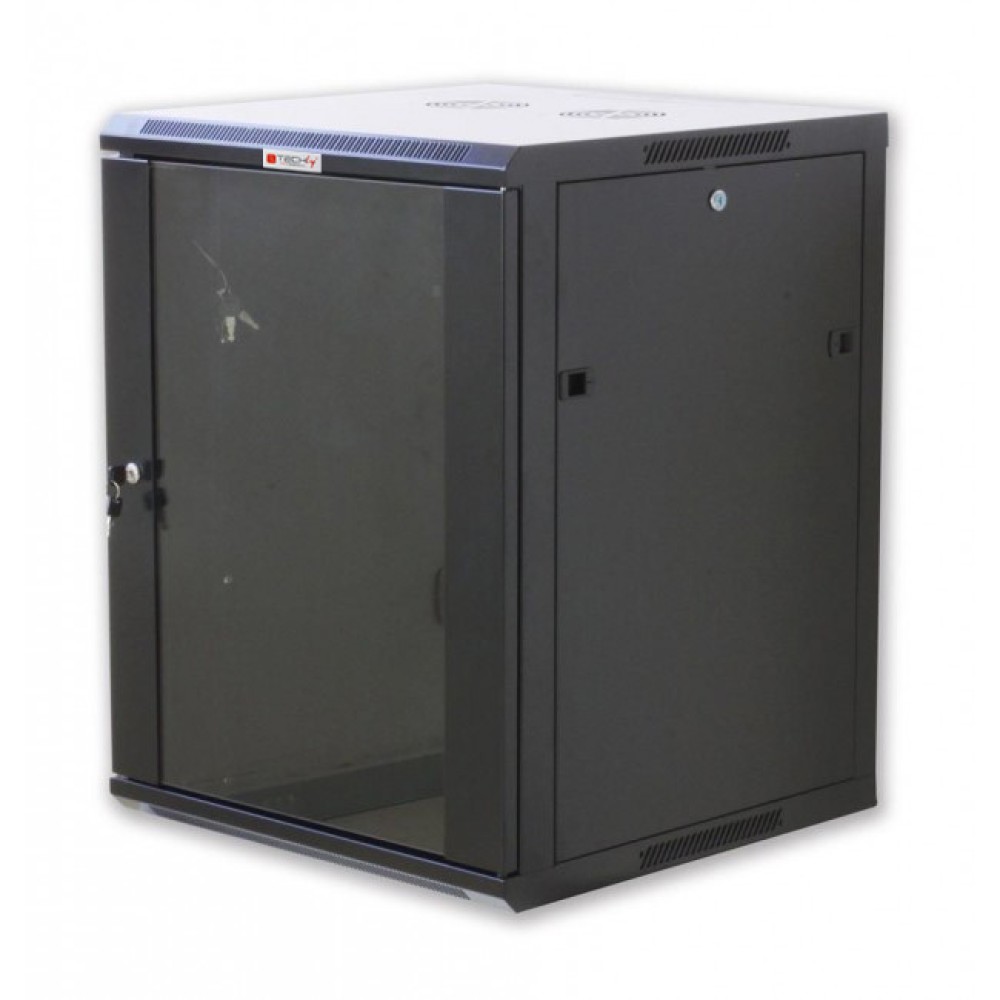

Name: Wall Rack Cabinet 19" 12 units D450 to Assemble Black
Brand: TECHLY PROFESSIONAL
SKU: I-CASE FP-2012BKTY

Cod: I-CASE FP-2012BKTY

Color

Grey Black

Built-in closet individual section 12 units supplied to assemble
Solid welded cold-rolled steel
Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
Fixed-blind Rear Panel
Side panels removable blind
Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
Preparation for the installation of two 120 mm fans on the roof
Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 300 mm with fully advanced posts, 210 mm fully backward uprights)
Slots for air passage at the top and bottom of the front and side panels
Static load: 60 kg
Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
Includes grounding kit
RAL 9004 (black)
Dimensions: 635x570x450 mm (HxWxD)

Description Data sheet Reviews Drivers & manuals

Cod: I-CASE FP-2012BKTY

Barcode: 8054529022762

Supplier Code: 022762

Weight: 24.045 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod

I-CASE FP-2012BKTY

Barcode

8054529022762

Supplier Code

022762

Weight

24.045 Kg

Min. sale unit

1 Pcs

Package pcs

1 Pcs

NO LONGER AVAILABLE

This product has been replaced by I-CASE FP-4512BK, or search in the category Wall cabinets 19 inches for a product that meets your needs.

Go to category

Alternative products

Description

Built-in closet individual section 12 units supplied to assemble
Solid welded cold-rolled steel
Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
Fixed-blind Rear Panel
Side panels removable blind
Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
Preparation for the installation of two 120 mm fans on the roof
Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 300 mm with fully advanced posts, 210 mm fully backward uprights)
Slots for air passage at the top and bottom of the front and side panels
Static load: 60 kg
Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
Includes grounding kit
RAL 9004 (black)
Dimensions: 635x570x450 mm (HxWxD)

Reviews

Data sheet

general
Brand	TECHLY PROFESSIONAL	Barcode	8054529022762
Typology	Wall mount	Rack inches	19"
Assembly	To be assembled	Units	12
Color	Black	Ingress Protection IP	20
Ability to static load	60 kg	Certifications	ISO 9001
Years of Warranty	15	Codice Fornitore	022762

dimensions
Rack width	570 mm	Rack depth	450 mm
Height	635 mm	Profondità utile	300 mm
Weight	24.0450

side panels
Appearance	Blind	Removable	Yes
Closure type	-

rear panel
Appearance	Blind	Removable	-
Closing handle points	-	Maximum aperture	-

front door
Appearance	Tempered glass	Removable	Yes
Door material	Glass	Reversible	Yes
Closure type	Padlock	Locking points	-
Maximum aperture	180°

roof
Prepared for ventilation	Yes	Prepared for Cable Input	-

uprights
Front	2 adjustable	Rear	No

included accessories
Leveling feet	No	Base	No
Wheel	No	Uprights 10''/19''	Anteriors
Brushes hold powder	-	Grounding kit	Yes
The package includes	10 dadi in gabbia, 10 viti Torx, 1 chiave Torx
