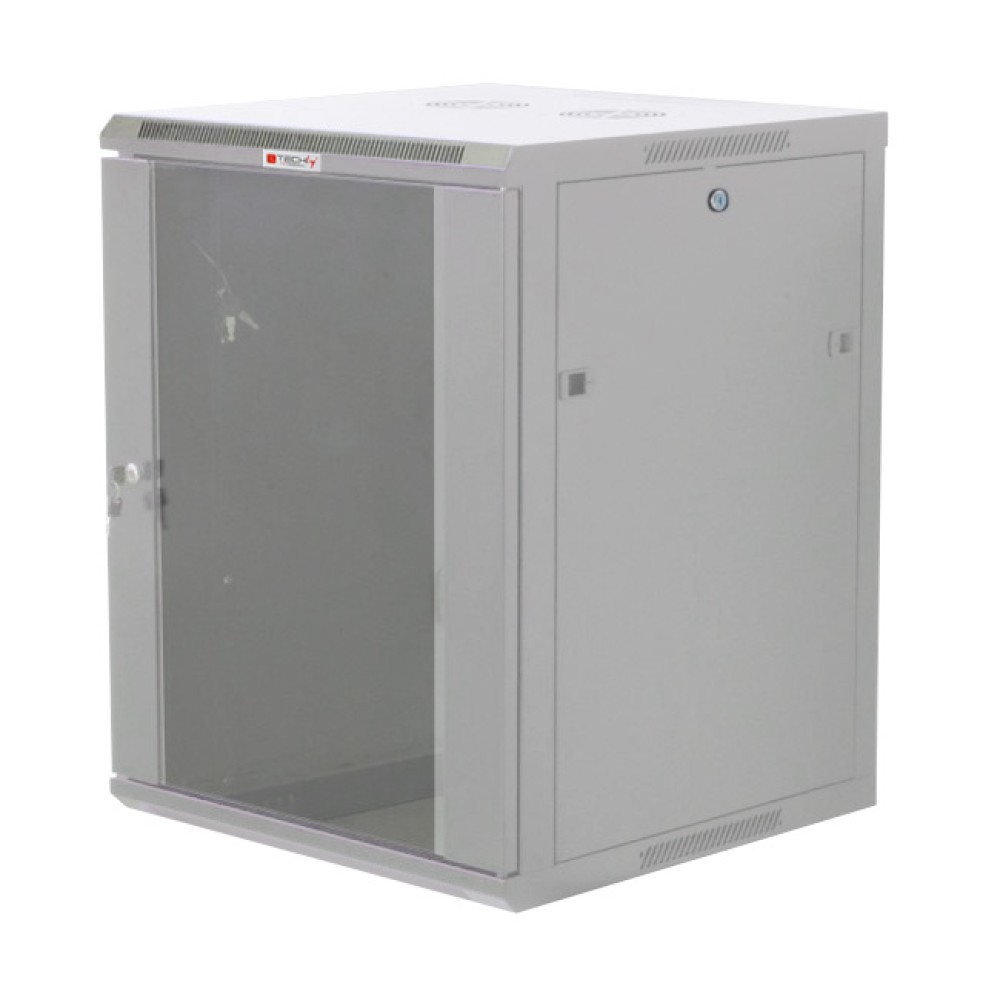

Wall Rack Cabinet 19" 12 units D450 to Assemble Grey

4,0 / 5

Cod: I-CASE FP-2012GTY

Barcode: 8054529023523

Supplier Code: 023523

Weight: 23.100 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Available

Incl. Tax: €200.19

Excl. Tax: €164.09 + VAT

Cod
I-CASE FP-2012GTY
Barcode
8054529023523
Supplier Code
023523
Weight
23.100 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Add to Compare
Free shipping
Order now and we'll ship tomorrow
Made easy
Secure payments
Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 60 kg
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Built-in closet individual section 12 units supplied to assemble
  • Solid welded cold-rolled steel
  • Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
  • Fixed-blind Rear Panel
  • Side panels removable blind
  • Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
  • Preparation for the installation of two 120 mm fans on the roof
  • Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 300 mm with fully advanced posts, 210 mm fully backward uprights)
  • Slots for air passage at the top and bottom of the front and side panels
  • Static load: 60 kg
  • Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
  • Includes grounding kit
  • Color RAL 7035 (grey)
  • Dimensions: 635x570x450 mm (HxWxD)
Description
  • Built-in closet individual section 12 units supplied to assemble
  • Solid welded cold-rolled steel
  • Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
  • Fixed-blind Rear Panel
  • Side panels removable blind
  • Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
  • Preparation for the installation of two 120 mm fans on the roof
  • Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 300 mm with fully advanced posts, 210 mm fully backward uprights)
  • Slots for air passage at the top and bottom of the front and side panels
  • Static load: 60 kg
  • Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
  • Includes grounding kit
  • Color RAL 7035 (grey)
  • Dimensions: 635x570x450 mm (HxWxD)
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8054529023523
Typology Wall mount Rack inches 19"
Assembly To be assembled Units 12
Color Grey Ingress Protection IP 20
Ability to static load 60 kg Certifications ISO 9001
Years of Warranty 15 Codice Fornitore 023523
dimensions
Rack width 570 mm Rack depth 450 mm
Height 635 mm Profondità utile 300 mm
Weight 23.1000
side panels
Appearance Blind Removable Yes
Closure type -
rear panel
Appearance Blind Removable -
Closing handle points - Maximum aperture -
front door
Appearance Tempered glass Removable Yes
Door material Glass Reversible Yes
Closure type Padlock Locking points -
Maximum aperture 180°
roof
Prepared for ventilation Yes Prepared for Cable Input -
uprights
Front 2 adjustable Rear No
included accessories
Leveling feet No Base No
Wheel No Uprights 10''/19'' Anteriors
Brushes hold powder - Grounding kit Yes
The package includes 10 dadi in gabbia, 10 viti Torx, 1 chiave Torx
