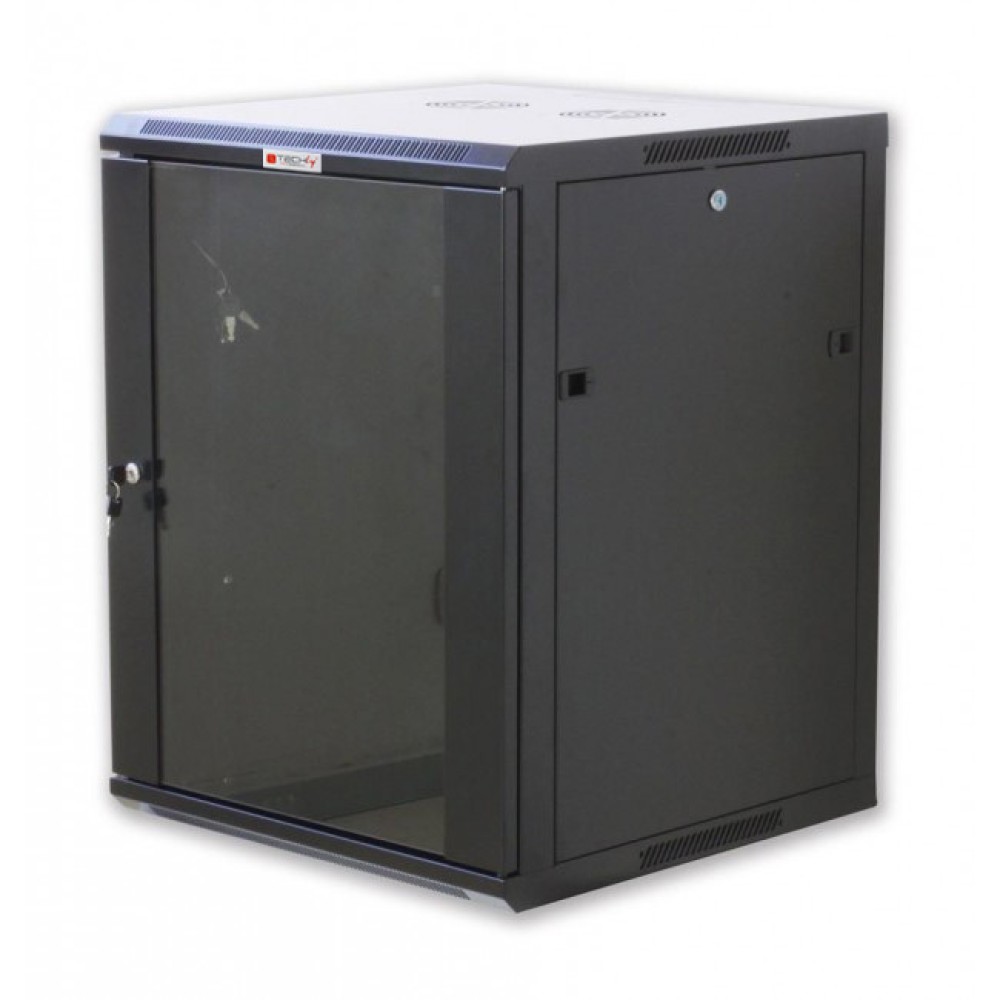

Wall Rack Cabinet 19" 15 units D450 to Assemble Black
Press release & video?
Code: I-CASE FP-2015BKTY    Barcode: 8054529022779

   Supplier Code: 022779

Available

Wall Rack Cabinet 19" 15 units D450 to Assemble Black

Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 60 kg
Certificazioni: ISO 9001
Anni di Garanzia: 15
Choose a different Option:

• Built-in closet individual section 15 units supplied to assemble
• Solid welded cold-rolled steel
• Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
• Fixed-blind Rear Panel
• Side panels removable blind
• Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
• Preparation for the installation of two 120 mm fans on the roof
• Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 300 mm with fully advanced posts, 210 mm fully backward uprights)
• Slots for air passage at the top and bottom of the front and side panels
• Static load: 60 kg
• Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
• Includes grounding kit
• RAL 9004 (black)
• Dimensions: 770x570x450 mm (HxWxD)

Description

Details

• Built-in closet individual section 15 units supplied to assemble
• Solid welded cold-rolled steel
• Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
• Fixed-blind Rear Panel
• Side panels removable blind
• Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
• Preparation for the installation of two 120 mm fans on the roof
• Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 300 mm with fully advanced posts, 210 mm fully backward uprights)
• Slots for air passage at the top and bottom of the front and side panels
• Static load: 60 kg
• Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
• Includes grounding kit
• RAL 9004 (black)
• Dimensions: 770x570x450 mm (HxWxD)
data sheet
generale
Brand
Techly Professional
Barcode
8054529022779
Typology
Wall mount
Rack inches
19"
Assembly
To be assembled
Units
15
Color
Black
Ingress Protection IP
20
Ability to static load
60 kg
Goods origin
No
Certifications
ISO 9001
Years of Warranty
15
Codice Fornitore
022779
dimensioni
Rack width
570 mm
Rack depth
450 mm
Height
770 mm
Profondità utile
300 mm
Weight
26.4600
pannelli laterali
Appearance
Blind
Removable
Yes
Closure type
No
pannello posteriore
Appearance
Blind
Removable
No
Closing handle points
No
Maximum aperture
No
porta anteriore
Appearance
Tempered glass
Removable
Yes
Door material
Glass
Reversible
Yes
Closure type
Padlock
Locking points
No
Maximum aperture
180°
tetto
Prepared for ventilation
Yes
Prepared for Cable Input
No
montanti
Front
2 adjustable
Rear
No
accessori compresi
Leveling feet
No
Base
No
Wheel
No
Uprights 10''/19''
Anteriors
Brushes hold powder
No
Grounding kit
Yes
The package includes
10 dadi in gabbia, 10 viti Torx, 1 chiave Torx
