Techly Professional

Wall Rack Cabinet 19" 17U IP65 with Glass Door Gray 200mm depth

Cod: I-CASE IP-1720GV

Barcode: 8051128102161

Supplier Code: 102161

Weight: 29.358 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Available

Incl. Tax: €391.00

Excl. Tax: €320.49 + VAT

Cod
I-CASE IP-1720GV
Barcode
8051128102161
Supplier Code
102161
Weight
29.358 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Add to Compare
Free shipping
Order now and we'll ship tomorrow
Made easy
Secure payments
Pollici Rack: 19
Grado di protezione IP: 65
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Wall mount cabinet 17 units with a single port in high glass IP65 protection for installation in extreme conditions (dusty, salt spray ..)
  • Closing with key double bar ø 3mm System
  • Pair 19" adjustable front
  • Cable Entry Plate on the basis protected by seal
  • Degree of protection IP65 according to IEC EN62208; 60529
  • Degree of resistance IK9 shocks in accordance with IEC EN62208; EN 50102
  • Color: RAL 7035 (gray)
  • Dimensions: 800x600x200 mm (HxWxD)
Description
  • Wall mount cabinet 17 units with a single port in high glass IP65 protection for installation in extreme conditions (dusty, salt spray ..): it allows you to protect the equipment installed inside from dust and water
  • Steel Body d. 15/10 and glass transparent plate 4mm; Full cash sendzimir profiles fixed on the door
  • Painted with epoxy polyester powder
  • Closing with key double bar ø 3mm System
  • Pair 19 "adjustable front
  • Cable Entry Plate on the basis protected by seal
  • Degree of protection IP65 according to IEC EN62208; 60529
  • Degree of resistance IK9 shocks in accordance with IEC EN62208; EN 50102
  • Color: RAL 7035 (gray)
  • Dimensions: 800x600x200 mm (HxWxD)
Certification
  • Compliance with following norms: EN 62208, EN60529, UNI EN ISO 9001:2008

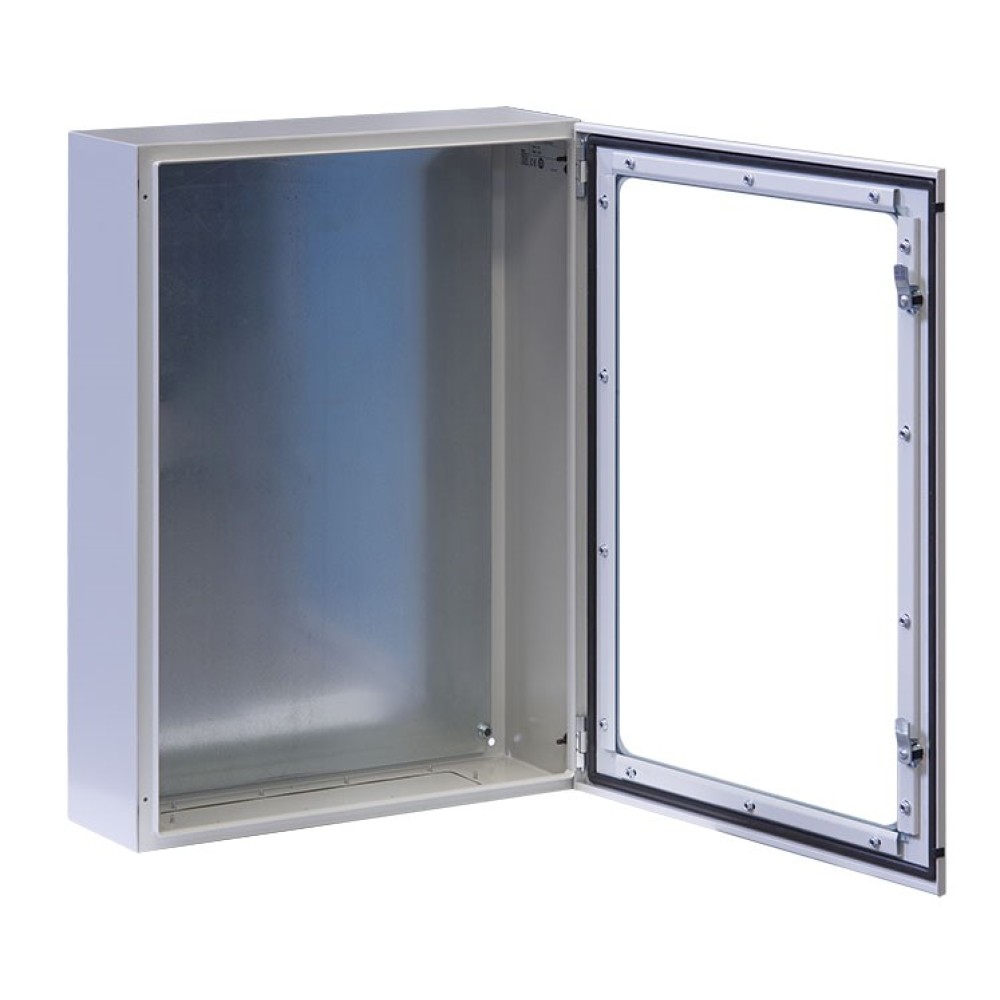

* The picture is illustrative and only intended to highlight the structure of the cabinet; color and size refer to the product page
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8051128102161
Typology Wall mount Rack inches 19"
Assembly Assembled Units 17
Color Grey Ingress Protection IP 65
Ability to static load - Certifications ISO 9001, EN 60529
Years of Warranty 15 Codice Fornitore 102161
dimensions
Rack width 600 mm Rack depth 200 mm
Height 800 mm Weight 29.3580
side panels
Appearance Blind Removable No
Closure type -
rear panel
Appearance Blind Removable No
Closing handle points - Maximum aperture -
front door
Appearance Tempered glass Removable Yes
Door material Glass Reversible Yes
Closure type Lock Locking points 2
Maximum aperture -
roof
Prepared for ventilation No Prepared for Cable Input No
uprights
Front No Rear No
included accessories
Leveling feet No Base No
Wheel No Uprights 10''/19'' -
Brushes hold powder No Grounding kit No
