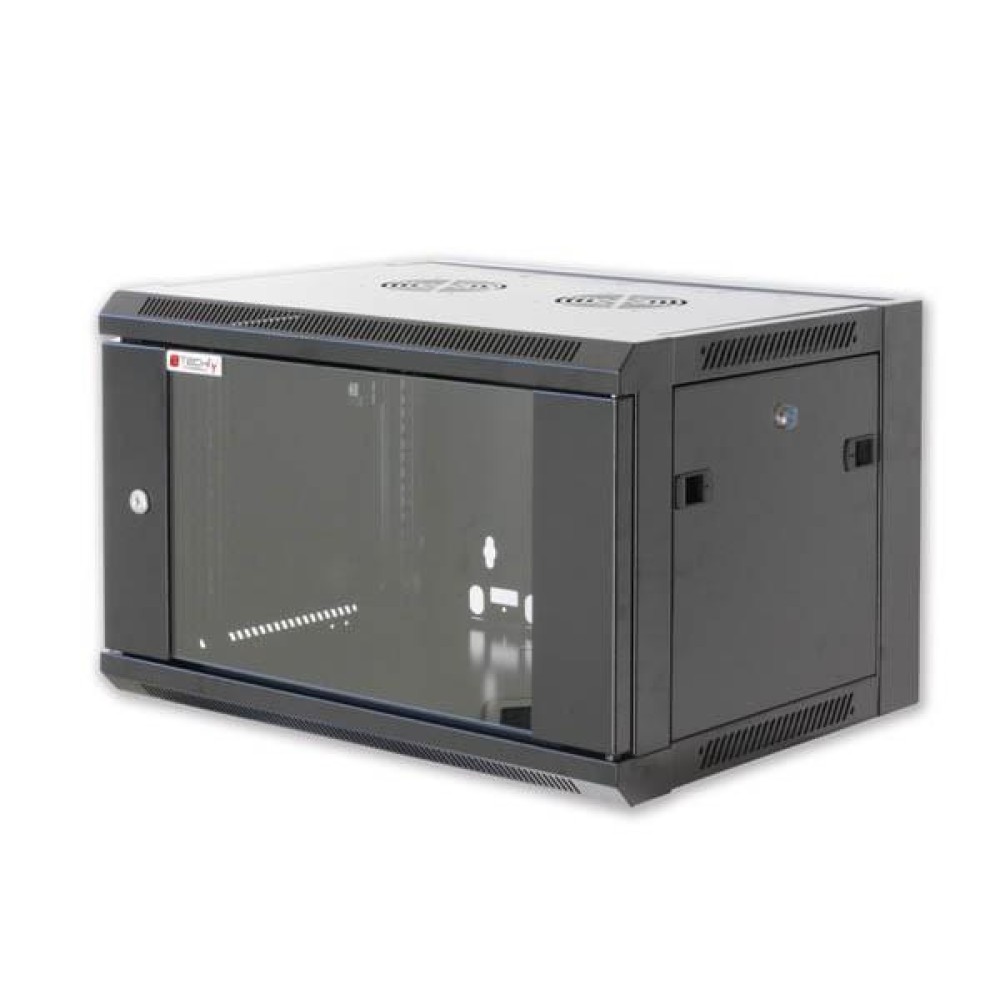

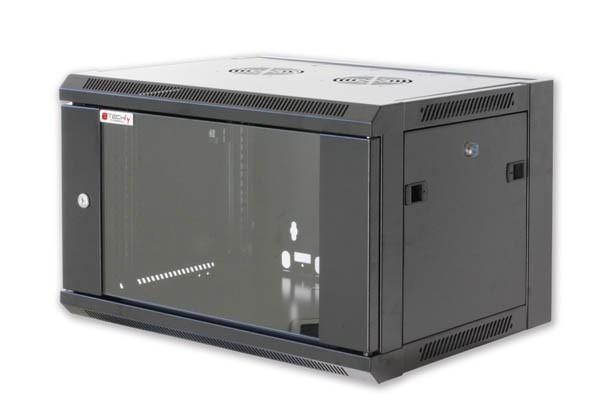

Wall Rack Cabinet 19" D600 9 units to Assemble Black

Cod: I-CASE FP-3009BKTY

Barcode: 8054529023578

Supplier Code: 023578

Weight: 21.525 Kg

Min. sale unit: 1 Pcs

Package pcs: 1 Pcs

Cod
I-CASE FP-3009BKTY
Barcode
8054529023578
Supplier Code
023578
Weight
21.525 Kg
Min. sale unit
1 Pcs
Package pcs
1 Pcs
Pollici Rack: 19
Grado di protezione IP: 20
Capacità di portata statica: 60 kg
Certificazioni: ISO 9001
Anni di Garanzia: 15
  • Built-in closet individual section 9 units provided to be assembled
  • Solid welded cold-rolled steel
  • Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
  • Fixed-blind Rear Panel
  • Side panels removable blind
  • Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
  • Preparation for the installation of two 120 mm fans on the roof
  • Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 450 mm with fully advanced uprights)
  • Slots for air passage at the top and bottom of the front and side panels
  • Static load: 60 kg
  • Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
  • Includes grounding kit
  • RAL 9004 (black)
  • Dimensions: 500x570x600 mm (HxWxD)
Description
  • Built-in closet individual section 9 units provided to be assembled
  • Solid welded cold-rolled steel
  • Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180 °, with key lock
  • Fixed-blind Rear Panel
  • Side panels removable blind
  • Provision for cable entry through the base and the roof pre-sheared profiles (230 x 45 mm)
  • Preparation for the installation of two 120 mm fans on the roof
  • Front numbered uprights Pair 19 "1.5 mm, adjustable in depth (maximum usable depth 450 mm with fully advanced uprights)
  • Slots for air passage at the top and bottom of the front and side panels
  • Static load: 60 kg
  • Comes standard mounting kit consists of 10 cage nuts, 10 Torx screws and Torx
  • Includes grounding kit
  • RAL 9004 (black)
  • Dimensions: 500x570x600 mm (HxWxD)
Data sheet
general
Brand TECHLY PROFESSIONAL Barcode 8054529023578
Typology Wall mount Rack inches 19"
Assembly To be assembled Units 9
Color Black Ingress Protection IP 20
Ability to static load 60 kg Certifications ISO 9001
Years of Warranty 15 Codice Fornitore 023578
dimensions
Rack width 570 mm Rack depth 600 mm
Height 500 mm Profondità utile 450 mm
Weight 21.5250
side panels
Appearance Blind Removable Yes
Closure type -
rear panel
Appearance Blind Removable -
Closing handle points - Maximum aperture -
front door
Appearance Tempered glass Removable Yes
Door material Glass Reversible Yes
Closure type Padlock Locking points -
Maximum aperture 180°
roof
Prepared for ventilation Yes Prepared for Cable Input -
uprights
Front 2 adjustable Rear No
included accessories
Leveling feet No Base No
Wheel No Uprights 10''/19'' Anteriors
Brushes hold powder - Grounding kit Yes
The package includes 10 dadi in gabbia, 10 viti Torx, 1 chiave Torx
