Gas Wall Mount Wall Mount for Curves / Plates 23-55" TV 385mm Black
Code: ICA-LCD G441-BK    Barcode: 8051128100914

   Supplier Code: 100914

NO LONGER AVAILABLE

Gas Wall Mount Wall Mount for Curves / Plates 23-55" TV 385mm Black

Certificazioni: RoHS
Anni di Garanzia: 2
Dimensioni TV: 23 - 55
Portata Kg: 30
Distanza minima muro: 61 mm

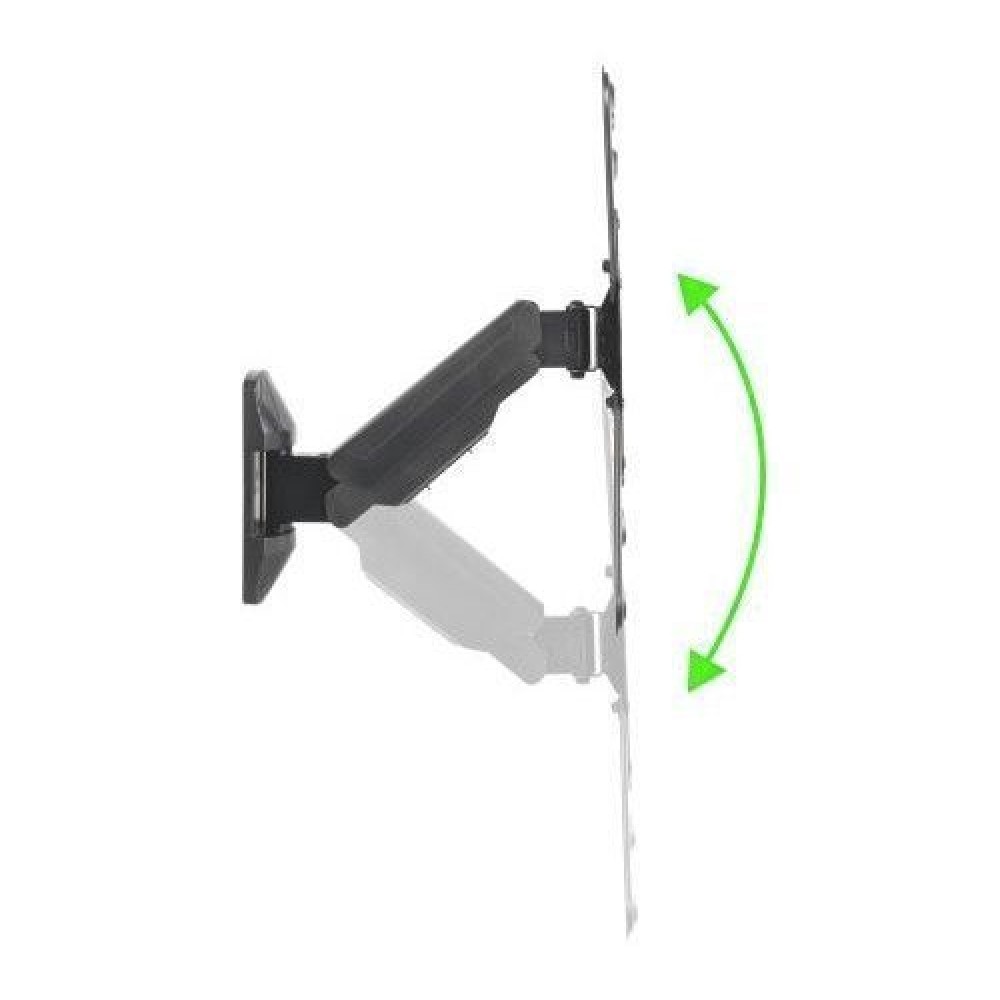

Inclinazione Verticale: +/- 15°
Inclinazione orizzontale: 180°
Supporto TV curve: Yes
Choose a different Option:

• Bracket suitable for LCD TV 23-55" both curved and flat
• VESA 75x75; 100x100; 200x200; 300x300; 400X400 mm
• Maximum supported weight: 30 kg
• Inclination +/- 15°
• Horizontal orientation: 180°
• Distance from the wall: minimum 61 mm; Maximum 385 mm
• 2-arm arm with a maximum extension of 385 mm
• Black Colour

Accessories
    Description

    Details

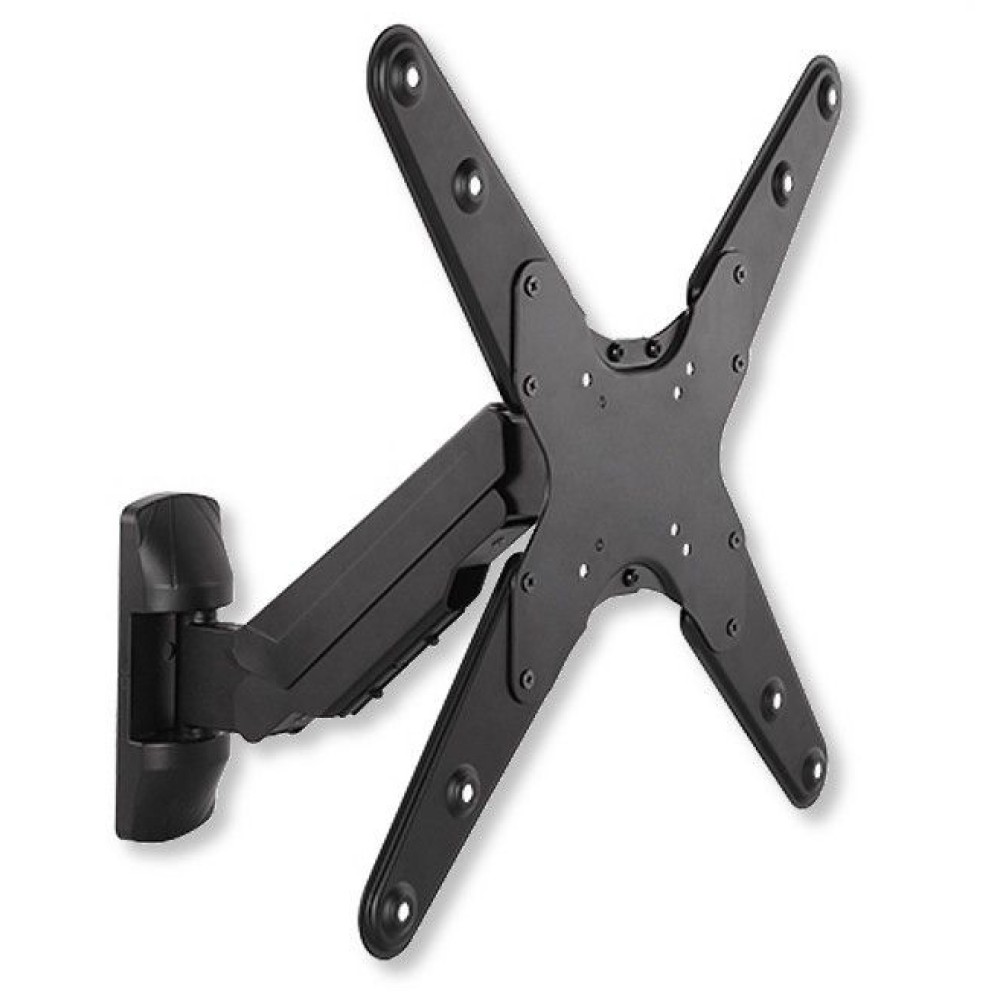

    • Gas spring bracket for fixing a curved or flat LED / LCD TV to the wall; Easy and fast to install, is ideal for home, office and commercial applications

    Features
    • Suitable for LCD TV 23-55"
    • Supports VESA 75x75, 100x100, 200x100, 200x200, 400x200, 300x300, 400x300, 400x400 mm
    • Maximum supported weight: 30 kg
    • 2-arm arm with a maximum extension of 385 mm

    Specifications
    • Inclination +/- 15°
    • Horizontal orientation: 180°
    • Minimum distance from the wall: 61 mm
    • Maximum distance from the wall: 385 mm
    • Black Colour

    The package includes
    • Wall bracket for curved and flat LCD TVs
    • Fixing accessories (screws, dowels ...) and installation instructions
    data sheet
    generale
    Brand
    Techly Np
    Barcode
    8051128100914
    Weight
    4.8600
    Certifications
    RoHS
    The package includes
    • Supporto a muro per TV LED LCD curve e piatte • Accessori di fissaggio (viti, tasselli...) e istruzioni per l'installazione
    Years of Warranty
    2
    Codice Fornitore
    100914
    compatibilità
    Typology
    Wall mount
    TV Size
    23 - 55"
    VESA (mm)
    75x75 , 100x100, 200x100 , 200x200 , 300x300 , 400x300, 400x400
    Capacity Kg
    30
    caratteristiche
    Minimum wall distance
    61 mm
    Maximum wall distance
    385 mm
    Tilt
    +/- 15°
    Swivel
    180°
    Junctions number
    2
    Rotation
    No
    Color
    Black
    Levelling bubble
    No
    Curved TV support
    Yes
    Security system
    No
